首頁進口晶振耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃

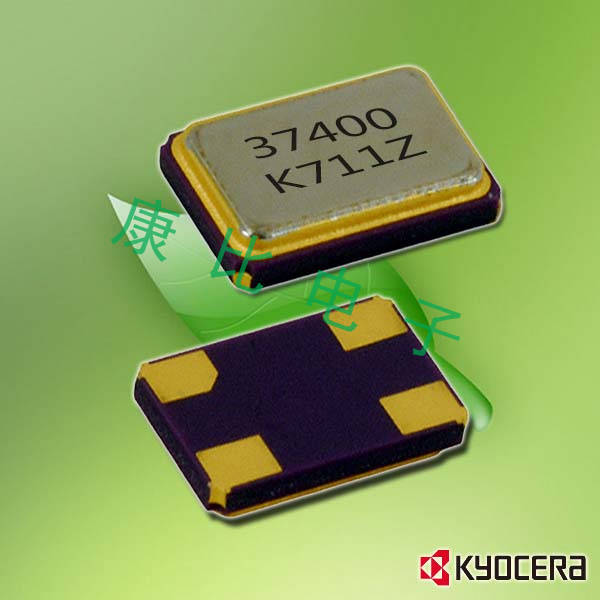

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃

產品型號：21510230
頻率：32MHz
尺寸：3.2x2.5mm
產品介紹：耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，日本進口晶振，Kyocera京瓷晶振，型號CX3225SB，編碼為：CX3225SB32000D0PSTC1，是一款小體積晶振...

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，日本進口晶振，Kyocera京瓷晶振，型號CX3225SB，編碼為：CX3225SB32000D0PSTC1，是一款小體積晶振尺寸3.2x2.5x0.55mm陶瓷封裝，四腳貼片晶振，無源晶振，石英晶體諧振器，車載對應石英振子，進口SMD晶振，耐高溫晶振，無鉛環保晶振，頻率為：32MHz，工作溫度范圍：-40℃至+125℃，石英晶振具有超小型晶振、輕薄型晶振、耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。應用于：汽車電子設備，發動機控制，高速車載網絡，車載控制器晶振，汽車動力轉向控制器晶振，汽車胎壓檢測專用晶振，通訊設備晶振，無線網絡晶振，藍牙模塊等應用。

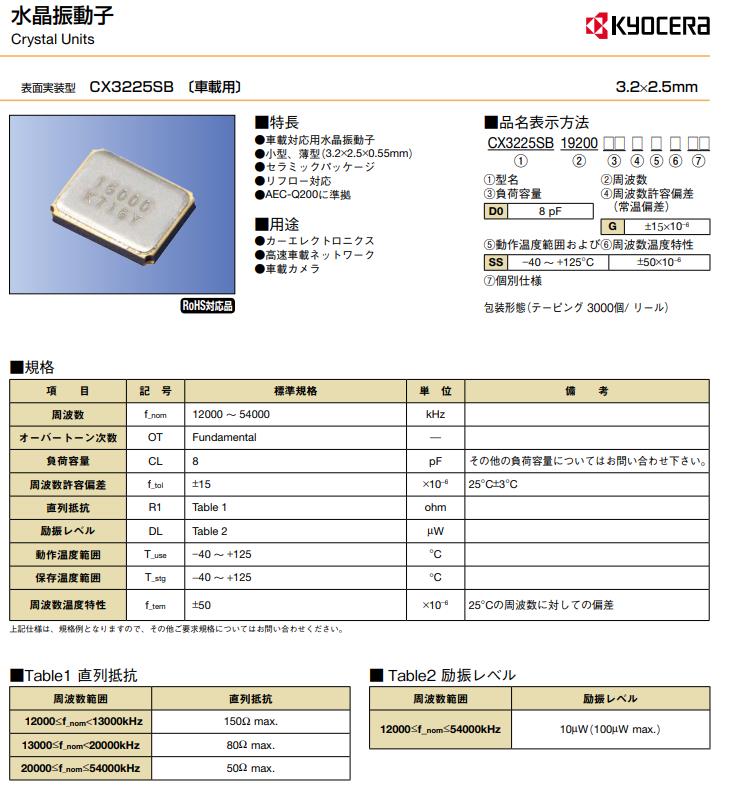

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，參數表

項目	符號	CX3225SB 規格	単位	備考
周波數	f_nom	12000 ~ 54000	kHz
超調階數	OT	Fundamental	―
負荷容量	CL	8	pF	關于其他的負荷容量請咨詢
周波數許容偏差	f_tol	±15	× 10−6	25°C±3°C
直列抵抗	R1	Table 1	ohm
激勵水平	DL	Table 2	W
動作溫度範囲	T_use	−40~+125	°C
保存溫度範囲	T_stg	−40~+125	°C
周波數溫度特性	f_tem	± 50	× 10−6	相對于25℃頻率的偏差

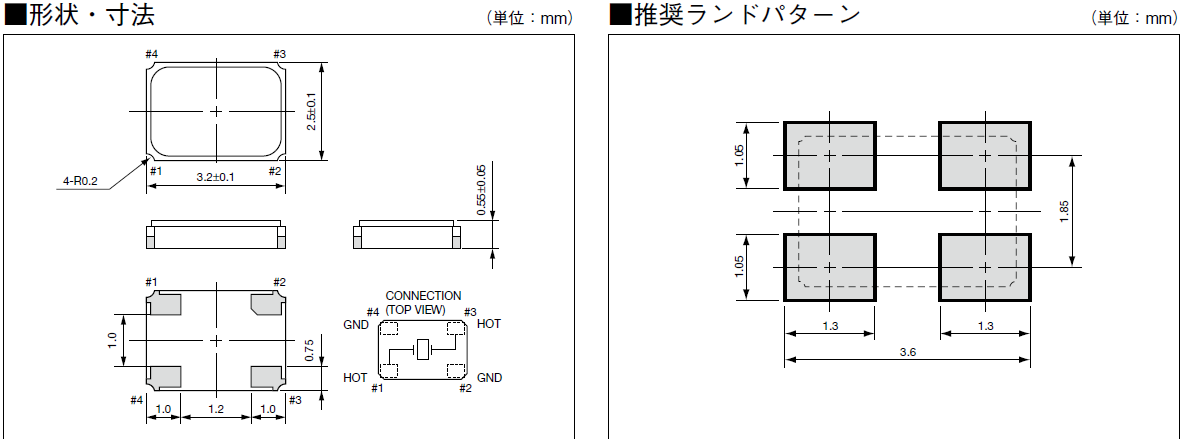

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，尺寸圖

原廠編碼	貼片晶振	型號	頻率	工作溫度	包裝/封裝
CX3225SB30000D0FPLCC	Kyocera京瓷晶振	CX3225SB	30MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0FFFCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-20°C ~ 70°C	4-SMD, No Lead
CX3225SB48000D0FFFCC	Kyocera京瓷晶振	CX3225SB	48MHz	-20°C ~ 70°C	4-SMD, No Lead
CX3225SB27000D0FPLCC	Kyocera京瓷晶振	CX3225SB	27MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB25000D0FPLCC	Kyocera京瓷晶振	CX3225SB	25MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0FPJC2	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB16000E0FPZ25	Kyocera京瓷晶振	CX3225SB	16MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB16000D0FLJZZ	Kyocera京瓷晶振	CX3225SB	16MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0FPJC1	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB12000D0FLJCC	Kyocera京瓷晶振	CX3225SB	12MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0FPLCC	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0FPLCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0WPSC2	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB13560D0FLJCC	Kyocera京瓷晶振	CX3225SB	13.56MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB20000H0FLJCC	Kyocera京瓷晶振	CX3225SB	20MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB32000H0FLJCC	Kyocera京瓷晶振	CX3225SB	32MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB40000H0FLJCC	Kyocera京瓷晶振	CX3225SB	40MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB12000D0FPNCC	Kyocera京瓷晶振	CX3225SB	12MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB13560D0FPLCC	Kyocera京瓷晶振	CX3225SB	13.56MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24000D0FPLCC	Kyocera京瓷晶振	CX3225SB	24MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB32000D0FPLCC	京瓷晶振	CX3225SB	32MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0WPSC2	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0FPJC2	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX101F-040.000-H0445	Kyocera京瓷晶振	CX3225SB	40MHz	0°C ~ 85°C	4-SMD, No Lead
CX3225SB12000D0GPSCC	Kyocera京瓷晶振	CX3225SB	12MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB12288D0GPSCC	Kyocera京瓷晶振	CX3225SB	12.288MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB13560D0GPSCC	Kyocera京瓷晶振	CX3225SB	13.56MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB16000D0GPSCC	Kyocera京瓷晶振	CX3225SB	16MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB19200D0GPSCC	Kyocera京瓷晶振	CX3225SB	19.2MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB20000D0GPSCC	Kyocera京瓷晶振	CX3225SB	20MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24000D0GPSCC	Kyocera京瓷晶振	CX3225SB	24MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24576D0GPSCC	Kyocera京瓷晶振	CX3225SB	24.576MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB25000D0GPSCC	Kyocera京瓷晶振	CX3225SB	25MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB26000D0GPSCC	Kyocera京瓷晶振	CX3225SB	26MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB27000D0GPSCC	Kyocera京瓷晶振	CX3225SB	27MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB30000D0GPSCC	Kyocera京瓷晶振	CX3225SB	30MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB32000D0GPSCC	Kyocera京瓷晶振	CX3225SB	32MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0FLJCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB38400H0FLJCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0GPSCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB40000D0GPSCC	Kyocera京瓷晶振	CX3225SB	40MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0GPSCC	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB49152D0FLJCC	Kyocera京瓷晶振	CX3225SB	49.152MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB49152H0FLJCC	Kyocera京瓷晶振	CX3225SB	49.152MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB49152D0GPSCC	Kyocera京瓷晶振	CX3225SB	49.152MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0GPSCC	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24576H0KESZZ	Kyocera京瓷晶振	CX3225SB	24.576MHz	-10°C ~ 70°C	4-SMD, No Lead
CX3225SB25000D0FLJZ1	Kyocera京瓷晶振	CX3225SB	25MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB27000D0FLJZ1	Kyocera京瓷晶振	CX3225SB	27MHz	-30°C ~ 85°C	4-SMD, No Lead
