首頁進口晶振愛普生晶振MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm

MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm

產品型號：16230938
頻率：16MHz~50MHz
尺寸：3.2x2.5mm
產品介紹：MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,50ppm，日本EPSON愛普生株式會社，進口晶振FA-238，產品編碼：Q22FA23800001，產品型號：FA-238V20.0000...

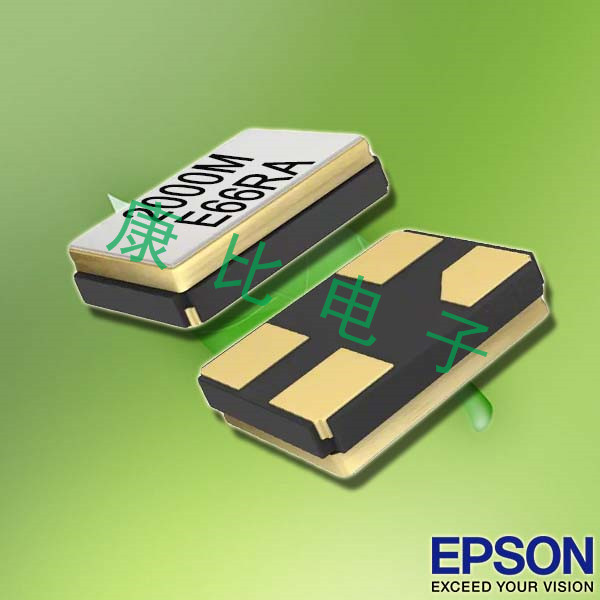

MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm，日本EPSON愛普生株式會社，進口晶振FA-238，產品編碼：Q22FA23800001，產品型號：FA-238V 20.000000MHz 12.0 ±15.0，是一款小體積晶振尺寸3.2x2.5x0.7mm四腳貼片晶振，Q22FA23800022無源晶振，石英晶振，Q22FA23800063石英晶體諧振器，無鉛環保晶振，頻率為20MHz，工作溫度范圍：-40 °C to +85 °C (+105 °C)，具有超小型，輕薄型，高品質，高質量，耐熱及耐環境特點，應用于智能手機，藍牙模塊，無線網絡，ISM頻帶收音機，MPU時鐘，車載控制器，汽車音響，汽車電子控制板，醫療設備，平板電腦，數碼電子等應用。

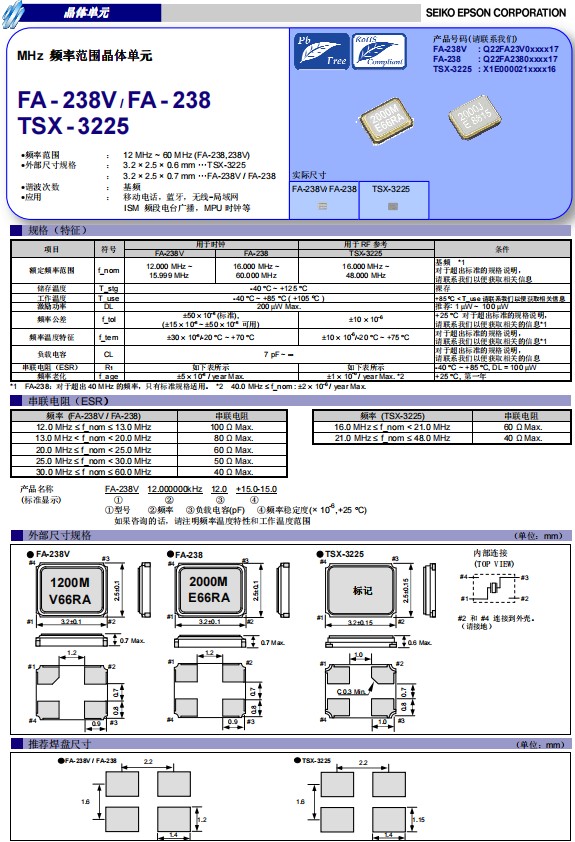

MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm，參數圖

Item	Symbol	For Clock		For RF Reference
		FA-238V	FA-238	TSX-3225
Nominal frequency range	f_nom	12 MHz to 15.999 MHz	16 MHz to 50 MHz	16 MHz to 48 MHz
Storage temperature	T_stg	-40 °C to +125 °C
Operating temperature	T_use	-40 °C to +85 °C (+105 °C)
Level of drive	DL	200 µW Max.
Frequency tolerance	f_tol	±50 × 10-6 (standard),		±10 × 10-6
		(±15 × 10-6 to ±50 × 10-6 is available)
Frequency versus temperature characteristics	f_tem	±30 × 10-6/-20 °C to +70 °C		±10 × 10-6/-20 °C to +75 °C
Load capacitance	CL	7 pF to ∞
Motional resistance (ESR)	R1	As per table below		As per table below
Frequency aging	f_age	±5 × 10-6 / year Max.		±1 × 10-6 / year Max.*2

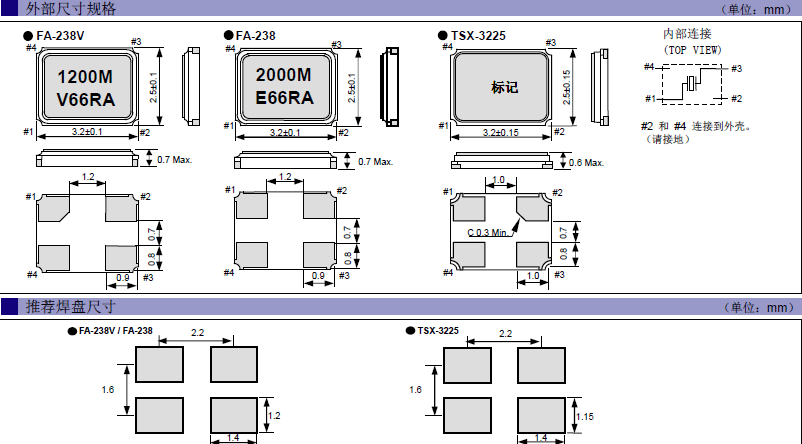

MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm，尺寸圖

MPU時鐘專用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm
產品名稱 FA-238V 12.000000MHz 12.0 ±15.0
（標準形式）① ② ③ ④
①型號
②頻率
③負載電容（pF）
④頻率容差（×10-6，+25°C）
高質量工作，為了提供高質量和可靠的產品和服務，滿足客戶需求，精工愛普生早期努力獲得ISO9000系列認證，并為日本和國外所有商業機構的ISO9001。我們還獲得了IATF 16949認證。

康比電子	尺寸	型號	頻率	負載	頻率 @+25°C
Q22FA23800001	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12 pF	+/-50 ppm
Q22FA23800002	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	18 pF	+/-50 ppm
Q22FA23800011	3.2 x 2.5 x 0.7mm	FA-238	16.934400 MHz	10 pF	+/-50 ppm
Q22FA23800013	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	10 pF	+/-50 ppm
Q22FA23800022	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	12 pF	+/-50 ppm
Q22FA23800028	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	18 pF	+/-50 ppm
Q22FA23800035	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12 pF	+/-30 ppm
Q22FA23800041	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	20 pF	+/-50 ppm
Q22FA23800044	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	7 pF	+/-50 ppm
Q22FA23800047	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	7 pF	+/-50 ppm
Q22FA23800048	3.2 x 2.5 x 0.7mm	FA-238	49.152000 MHz	12 pF	+/-50 ppm
Q22FA23800063	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	12 pF	+/-50 ppm
Q22FA23800065	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	12 pF	+/-50 ppm
Q22FA23800075	3.2 x 2.5 x 0.7mm	FA-238	50.000000 MHz	12 pF	+/-50 ppm
Q22FA23800076	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	10 pF	+/-50 ppm
Q22FA23800078	3.2 x 2.5 x 0.7mm	FA-238貼片晶振	48.000000 MHz	18 pF	+/-50 ppm
Q22FA23800079	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	10 pF	+/-50 ppm
Q22FA23800085	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	12 pF	+/-50 ppm
Q22FA23800088	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	12 pF	+/-30 ppm
Q22FA23800089	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	16 pF	+/-50 ppm
Q22FA23800091	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	20 pF	+/-50 ppm
Q22FA23800092	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	20 pF	+/-50 ppm
Q22FA23800093	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	12 pF	+/-50 ppm
Q22FA23800095	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	12 pF	+/-50 ppm
Q22FA23800098	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	10 pF	+/-50 ppm
Q22FA23800103	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	16 pF	+/-50 ppm
Q22FA23800114	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	18 pF	+/-50 ppm
Q22FA23800120	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	18 pF	+/-50 ppm
Q22FA23800127	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	16 pF	+/-50 ppm
Q22FA23800128	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	18 pF	+/-50 ppm
Q22FA23800129	3.2 x 2.5 x 0.7mm	FA-238	22.579200 MHz	10 pF	+/-50 ppm
Q22FA23800133	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	12 pF	+/-50 ppm
Q22FA23800137	3.2 x 2.5 x 0.7mm	FA-238	40.000000 MHz	18 pF	+/-50 ppm
Q22FA23800138	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	8 pF	+/-50 ppm
Q22FA23800140	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	16 pF	+/-50 ppm
Q22FA23800141	3.2 x 2.5 x 0.7mm	FA-238	32.000000 MHz	10 pF	+/-50 ppm
Q22FA23800146	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	10 pF	+/-50 ppm
Q22FA23800147	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	20 pF	+/-50 ppm
