- 產品型號：76801299
- 頻率：28.63636MHz
- 尺寸：3.2x2.5mm
- 產品介紹：CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，日本進口晶振，Kyocera京瓷晶振，型號CX3225CA，編碼為：CX3225CA28636D0HSSCC，是一款小體積晶振尺...
-

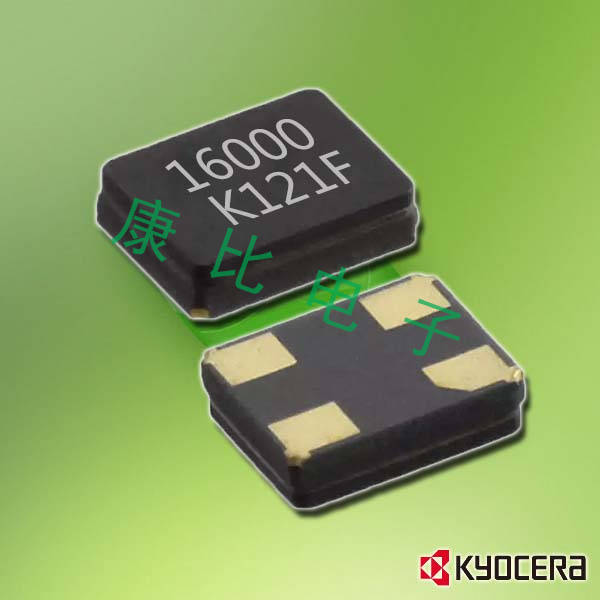

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200
.jpg)
.jpg)

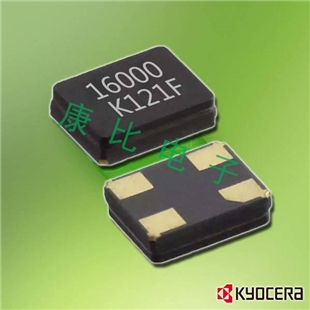

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，日本進口晶振，Kyocera京瓷晶振，型號CX3225CA，編碼為：CX3225CA28636D0HSSCC，是一款小體積晶振尺寸3.2x2.5x0.8mm陶瓷封裝，陶瓷諧振器，四腳貼片晶振，無源晶振，石英晶體諧振器，車載對應石英振子，SMD晶振，耐高溫晶振，無鉛環保晶振，頻率為：28.63636MHz，工作溫度范圍：-40℃至+125℃，石英晶振具有超小型晶振、輕薄型晶振、耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。應用于：汽車電子設備，發動機控制，高速車載網絡，車載控制器晶振，汽車動力轉向控制器晶振，汽車胎壓檢測專用晶振，通訊設備晶振，無線網絡晶振，藍牙模塊等應用。
.jpg)

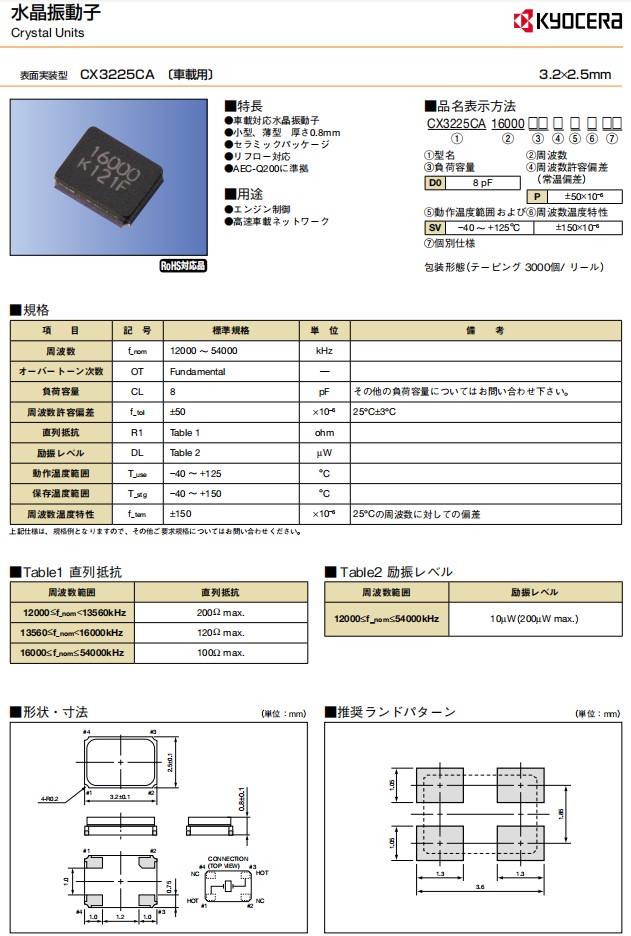

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，參數表
| 項 目 | 記 號 | CX3225CA 規格 | 単 位 | 備 考 |
| 周波數 | f_nom | 12000 ~ 54000 | kHz | |
| 超調階數 | OT | Fundamental | ― | |
| 負荷容量 | CL | 8 | pF | 關于其他的負荷容量請咨詢 |
| 周波數許容偏差 | f_tol | ±50 | × 10−6 | 25°C±3°C |
| 直列抵抗 | R1 | Table 1 | ohm | |
| 激勵水平 | DL | Table 2 |
W
|
|
| 動作溫度範囲 | T_use | −40 ~ +125 | °C | |
| 保存溫度範囲 | T_stg | −40 ~ +150 | °C | |
| 周波數溫度特性 | f_tem | ± 150 | × 10−6 | 相對于25℃頻率的偏差 |
.jpg)

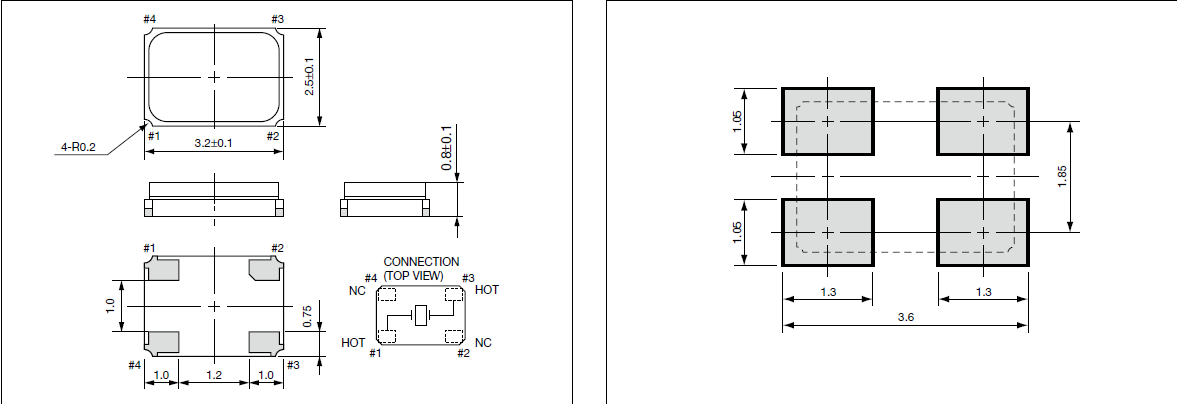

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，尺寸表
| 原廠編碼 | 京瓷貼片晶振 | 頻率 | 工作溫度 | 包裝/封裝 |
| CX3225CA32000D0HSSCC | CX3225CA | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA25000D0HSSCC | CX3225CA | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA12000P0HSTC1 | CX3225CA | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA12000D0HSSCC | CX3225CA | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000D0HSSCC | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA09843D0HSSTT | CX3225CA | 9.843MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA28636D0HSSCC | CX3225CA | 28.63636MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA27000D0HSSCC | CX3225CA | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA30000D0HSSCC | CX3225CA | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA24000D0HSSCC | CX3225CA | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA13560D0HSSCC | CX3225CA | 13.56MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000H0HSSCC | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA10000D0HSSTT | CX3225CA | 10MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA20000D0HSSCC | CX3225CA | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA26000D0HSSCC | CX3225CA | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA40000D0HSSCC | CX3225CA | 40MHz | -40°C ~ 125°C | SMD晶振 |
| CX3225CA09843D0HSSZ1 | CX3225CA | 9.84375MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA10000D0HSSZ1 | CX3225CA | 10MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA28636D0HSSZ1 | CX3225CA | 28.63636MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA12000D0HSSZ1 | CX3225CA | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA32000D0HSSZ1 | CX3225CA | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA20000D0HSSZ1 | CX3225CA | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA24000D0HSSZ1 | CX3225CA | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA25000D0HSSZ1 | CX3225CA | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA26000D0HSSZ1 | CX3225CA | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA27000D0HSSZ1 | CX3225CA | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA30000D0HSSZ1 | CX3225CA | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA13560D0HSSZ1 | CX3225CA | 13.56MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000D0HSSZ1 | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA40000D0HSSZ1 | CX3225CA | 40MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000H0HSSZ1 | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
