更多>>UF324/34系列超低抖動HCLS晶體振蕩器
來源：http://www.jqhs.com.cn 作者：康比電子 2022年07月11

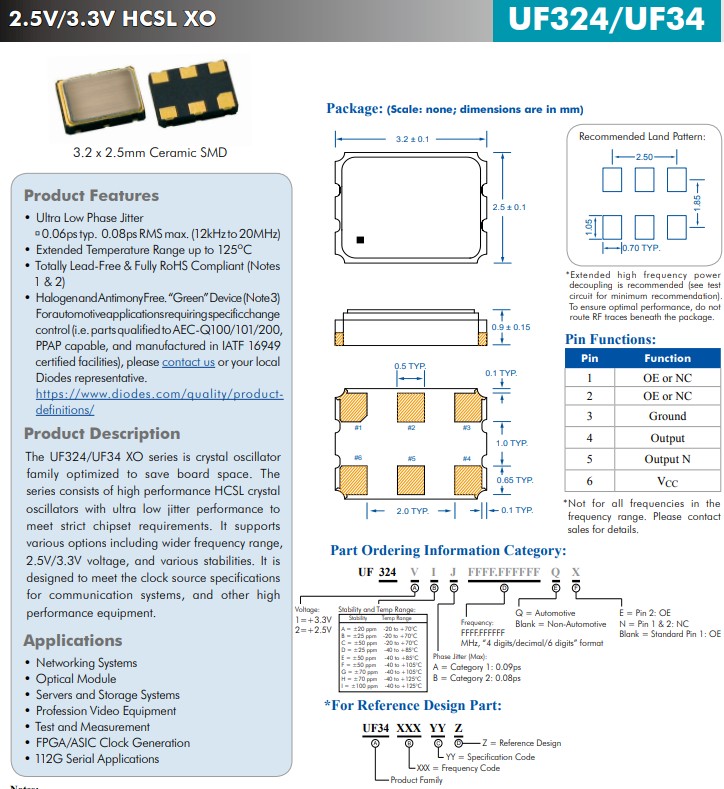

UF324/UF34 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。UF324/34系列，小體積尺寸3.2x2.5mm、超低抖動HCLS晶體振蕩器，該系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
.JPG)
.JPG)
特征：
超低相位抖動 有源晶振
0.06ps 典型值。0.08ps RMS 最大值。（12kHz至20MHz）
擴展溫度范圍高達 125℃
完全無鉛且完全符合 RoHS 標準
不含鹵素和銻。“綠色”設備
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G 串行應用
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
| KK3270047 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270035 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KK3270007 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270053 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KK3270041 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KK3270043 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| S1700C-20.0000 | Diodes Incorporated | SaRonix™ S1700 | 20MHz | ±100ppm |
| KK3270048 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KX3213H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3213A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KX3213D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213Z0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | - |
| KX2511G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| NX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 56MHz | ±50ppm |
| KX2511D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2511Z0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | - |
| NX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 59MHz | ±50ppm |
| FRSONT019 | Diodes Incorporated | SaRonix-eCera™ FR | 19.44MHz | ±25ppm |
| FRXDSL035 | Diodes Incorporated | SaRonix-eCera™ FR | 35.328MHz | ±25ppm |
| FRSONT038 | Diodes Incorporated | SaRonix-eCera™ FR | 38.88MHz | ±25ppm |
| KX2013C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2013E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| NX5011C0120.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 120MHz | ±50ppm |
| NX7012D0025.001875 | Diodes Incorporated | SaRonix-eCera™ NX | 25.001875MHz | ±25ppm |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb |
| JT255CF0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
| NX7011E0091.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 91.5MHz | ±50ppm |
| NX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ NX | 70.656MHz | ±25ppm |
| NX7011D0104.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 104MHz | ±25ppm |
| NX7021E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| SN10GE159 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 159.375MHz | ±50ppm |
| SNGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| LD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| LDGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| LDF550001 | Diodes Incorporated | SaRonix-eCera™ LD | 155.52MHz | ±25ppm |
| PDF620004 | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm |
| S1613B-27.0000 | Diodes Incorporated | SaRonix-eCera™ FN | 27MHz | ±50ppm |
| KM3270002 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| KM3270003 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm |
| PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm |

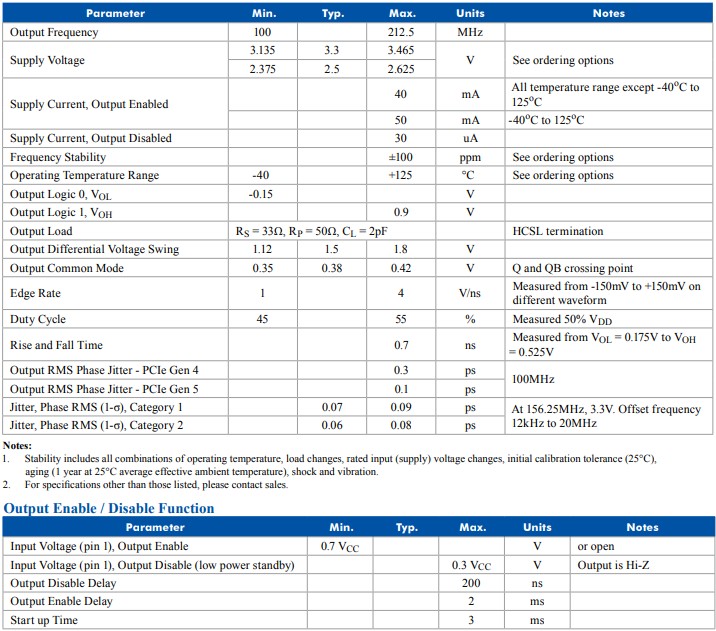

Product Parameters
| Stability (PPM) | 20 to 100 |
|---|---|
| Package Size (mm) | 3.2 x 2.5 x 0.9 |
| PkgType | Ceramic Seam |
| Freq Range (MHz) | 100 to 212.5 |
| Jitter RMS (ps) | 0.08 to 0.09 |
| Output Logic | HCSL |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
| ProductSeries | UF3 |
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
產品參數：
產品參數：
穩定性 20PPM到100PPM
包裝尺寸 3.2x2.5x0.9mm小體積晶振
包裝類型 陶瓷縫
頻率范圍 100MHz至212.5MHz
抖動均方根 (ps) 0.08 至 0.09
輸出邏輯 HCSL
電源電壓 3.3V, 2.5V
墊 6腳
產品系列 UF3
百利通亞陶晶振UF系列超低 抖動，微型晶體振蕩器是 用于高性能計算和網絡的前沿 要求最苛刻的行業 高級應用。Automotivecompliant變體可用。 這種新型晶體振蕩器 支持廣泛的應用 要求非常低的噪音 采用最小的工業標準封裝之一。較大的包裝 也可滿足靈活設計需求。有多種輸出標準可供選擇:LVPECL，LVDS和HCSL，以及 2.5V和3.3V的電源電壓， 提供客戶指定的頻率 高達212.5MHz，溫度 穩定性達到25PPM。
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
| NX5031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| FD0100003 | Diodes Incorporated | SaRonix-eCera™ FD | 1MHz | ±50ppm |
| FD0180008 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm |
| FD0180009 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±25ppm |
| FD0180010 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm |
| FD0200013 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±25ppm |
| FD0200014 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±50ppm |
| FD0200015 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±50ppm |
| FD0350006 | Diodes Incorporated | SaRonix-eCera™ FD | 3.579545MHz | ±50ppm |
| FD0360017 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm |
| FD0360018 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±25ppm |
| FD0360019 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm |
| FD0400021 | Diodes Incorporated | SaRonix-eCera™ FD | 4MHz | ±25ppm |
| FD0500003 | Diodes Incorporated | SaRonix-eCera™ FD | 5MHz | ±50ppm |
| FD0600006 | Diodes Incorporated | SaRonix-eCera™ FD | 6MHz | ±25ppm |
| FD0610002 | Diodes Incorporated | SaRonix-eCera™ FD | 6.144MHz | ±20ppm |
| FD0730013 | Diodes Incorporated | SaRonix-eCera™ FD | 7.3728MHz | ±50ppm |
| FD0800013 | Diodes Incorporated | SaRonix-eCera™ FD | 8MHz | ±50ppm |
| FD0810003 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±50ppm |
| FD0810004 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±25ppm |
| FD0810005 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±50ppm |
| FD0820001 | Diodes Incorporated | SaRonix-eCera™ FD | 8.25MHz | ±50ppm |
| FD1000015 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±50ppm |
| FD1000016 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±25ppm |
| FD1000017 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±50ppm |
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
| FD1100008 | Diodes Incorporated | SaRonix-eCera™ FD | 11.0592MHz |
| FD1120009 | Diodes Incorporated | SaRonix-eCera™ FD | 11.2896MHz |
| FD1200028 | Diodes Incorporated | SaRonix-eCera™ FD | 12MHz |
| FD1200029 | Diodes Incorporated | SaRonix-eCera™ FD | 12MHz |
| FD1200030 | Diodes Incorporated | SaRonix-eCera™ FD | 12MHz |
| FD1220014 | Diodes Incorporated | SaRonix-eCera™ FD | 12.288MHz |
| FD1220015 | Diodes Incorporated | SaRonix-eCera™ FD | 12.288MHz |
| FD1220016 | Diodes Incorporated | SaRonix-eCera™ FD | 12.288MHz |
| FD1350007 | Diodes Incorporated | SaRonix-eCera™ FD | 13.5MHz |
| FD1430016 | Diodes Incorporated | SaRonix-eCera™ FD | 14.3181MHz |
| FD1430018 | Diodes Incorporated | SaRonix-eCera™ FD | 14.3181MHz |
| FD1470015 | Diodes Incorporated | SaRonix-eCera™ FD | 14.7456MHz |
| FD1470017 | Diodes Incorporated | SaRonix-eCera™ FD | 14.7456MHz |
| FD1600015 | Diodes Incorporated | SaRonix-eCera™ FD | 16MHz |
| FD1600016 | Diodes Incorporated | SaRonix-eCera™ FD | 16MHz |
| FD1600017 | Diodes Incorporated | SaRonix-eCera™ FD | 16MHz |
| FD1630009 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz |
| FD1630010 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz |
| FD1630011 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz |
| FD1630012 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz |
| FD1650001 | Diodes Incorporated | SaRonix-eCera™ FD | 16.5MHz |
| FD1800003 | Diodes Incorporated | SaRonix-eCera™ FD | 18MHz |
| FD1840014 | Diodes Incorporated | SaRonix-eCera™ FD | 18.432MHz |
| FD1940001 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz |
| FD1940002 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz |
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
UFQ252/22 20~100 2.5 x 2.0 x 0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVPECL晶體振蕩器
UFQ252/22 20~100 2.5 x 2.0 x 0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVPECL晶體振蕩器
UFQ253/23 20~100 2.5 x 2.0 x 0.8 LVDS 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVDS差分晶振
UFQ254/24 20~100 2.5 x 2.0 x 0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動HCLS晶體振蕩器
UFQ322/32 20~100 3.2 x 2.5 x 0.9 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ323/33 20~100 3.2 x 2.5 x 0.9 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ324/34 20~100 3.2 x 2.5 x 0.9 HCSL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動HCLS晶體振蕩器
UFQ502/52 20~100 5.0 x 3.2 x 1.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVPECL晶體振蕩器
UFQ503/53 20~100 5.0 x 3.2 x 1.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVDS晶體振蕩器
UFQ504/54 20~100 5.0 x 3.2 x 1.2 HCSL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動HCLS晶體振蕩器
UFQ702/72 20~100 7.0 x 5.0 x 1.4 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVPECL晶體振蕩器
UFQ703 / 73 20~100 7.0 x 5.0 x 1.4 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVDS晶體振蕩器
UFQ704 / 74 20~100 7.0 x 5.0.x 1.4 HCSL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動HCLS晶體振蕩器
