更多>>Diodes推出新型的32.768KHz時鐘振蕩器為各種應用提供卓越性能FD2600033,ECERA晶振
來源：http://www.jqhs.com.cn 作者：lzf 2022年07月07
百利通亞陶晶振公司憑著自身獨有的魅力和誠信與許多用戶建立了密切的合作關系,用心發覺客戶需求,并針對性提供完美的晶振解決方案,使得用戶更信賴亞陶,優質的產品無疑能夠讓亞陶從眾多企業當中脫穎而出。Diodes服務的市場包括消費性電子、計算機、通訊、工業及汽車市場.Diodes推出新型的32.768KHz時鐘振蕩器為各種應用提供卓越性能FD2600033,ECERA晶振
Our 32.768kHz Crystal Oscillators (XO) have a superior performance for a wide range of applications. Among our offerings, is the world’s smallest 32.768kHz crystal oscillator (XO) with dimensions of only 2.0 x 1.6 mm (KM series). The KM series is designed to meet the challenges of miniaturization while maintaining superb accuracy of the timing signal. We also carry the KX series of crystal oscillators, which are the industry’s lowest power (at less than 10 µA) and tightest stability (+/- 20 ppm) 32kHz XOs.
我們的 32.768kHz 晶體振蕩器 (XO) 具有適用于各種應用的卓越性能。我們的產品包括世界上最小的 32.768kHz 晶體振蕩器 (XO)，尺寸僅為 2.0 x 1.6 mm（KM 系列）。KM 系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供 KX 系列晶體振蕩器，它們是業界功耗最低（小于 10 µA）和最嚴格穩定性 (+/- 20 ppm) 的 32kHz XO。
| FN6400020 | Diodes晶振 | SaRonix-eCera™ FN | 64MHz | ±25ppm | -20°C ~ 70°C |
| FN6600053 | Diodes晶振 | SaRonix-eCera™ FN | 66MHz | ±25ppm | -20°C ~ 70°C |
| FN6600055 | Diodes晶振 | SaRonix-eCera™ FN | 66MHz | ±50ppm | -20°C ~ 70°C |
| FN6600056 | Diodes晶振 | SaRonix-eCera™ FN | 66MHz | ±50ppm | -40°C ~ 85°C |
| FN6660065 | Diodes晶振 | SaRonix-eCera™ FN | 66.66MHz | ±50ppm | -40°C ~ 85°C |
| FN6660068 | Diodes晶振 | SaRonix-eCera™ FN | 66.666MHz | ±50ppm | -40°C ~ 85°C |
| FN6660069 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -20°C ~ 70°C |
| FN6660070 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±25ppm | -20°C ~ 70°C |
| FN6660071 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -40°C ~ 85°C |
| FN6660072 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±25ppm | -20°C ~ 70°C |
| FN6660074 | Diodes晶振 | SaRonix-eCera™ FN | 66.666MHz | ±50ppm | -20°C ~ 70°C |
| FN7410003 | Diodes晶振 | SaRonix-eCera™ FN | 74.175MHz | ±50ppm | -20°C ~ 70°C |
| UK2600002 | Diodes晶振 | SaRonix-eCera™ UK | 26MHz | ±20ppm | -30°C ~ 85°C |
| NX5021E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| NX5031E0166.666666 | Diodes晶振 | SaRonix-eCera™ NX | 166.666666MHz | ±50ppm | -40°C ~ 85°C |
| NX3222E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| FN1220025 | Diodes晶振 | SaRonix-eCera™ FN | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| UJ2600003 | Diodes晶振 | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| JT255CP0026.000000 | Diodes晶振 | SaRonix-eCera™ JT | 26MHz | ±500ppb | -40°C ~ 85°C |
| JT255CP0026.000000 | Diodes晶振 | SaRonix-eCera™ JT | 26MHz | ±500ppb | -40°C ~ 85°C |
| JT255CP0026.000000 | Diodes晶振 | SaRonix-eCera™ JT | 26MHz | ±500ppb | -40°C ~ 85°C |
| FD0670003 | Diodes晶振 | SaRonix-eCera™ FD | 6.7584MHz | ±25ppm | -40°C ~ 85°C |
| FD1300023 | Diodes晶振 | SaRonix-eCera™ FD | 13MHz | ±20ppm | -20°C ~ 70°C |
| FD1300024 | Diodes晶振 | SaRonix-eCera™ FD | 13MHz | ±20ppm | -20°C ~ 70°C |
| FD1430019 | Diodes晶振 | SaRonix-eCera™ FD | 14.31818MHz | ±25ppm | -40°C ~ 85°C |
| FD1940003 | Diodes晶振 | SaRonix-eCera™ FD | 19.44MHz | ±20ppm | -20°C ~ 70°C |
| FD2000047 | Diodes晶振 | SaRonix-eCera™ FD | 20MHz | ±20ppm | -20°C ~ 70°C |
| FD2000051 | Diodes晶振 | SaRonix-eCera™ FD | 20MHz | ±20ppm | -20°C ~ 70°C |
| FD2400026 | Diodes晶振 | SaRonix-eCera™ FD | 24MHz | ±20ppm | -20°C ~ 70°C |
| FD2500051 | Diodes晶振 | SaRonix-eCera™ FD | 25MHz | ±20ppm | -20°C ~ 70°C |
| FD2500053 | Diodes晶振 | SaRonix-eCera™ FD | 25MHz | ±20ppm | -20°C ~ 70°C |
| FD2500063 | Diodes晶振 | SaRonix-eCera™ FD | 25MHz | ±25ppm | -40°C ~ 85°C |
| FD2600029 | Diodes晶振 | SaRonix-eCera™ FD | 26MHz | ±20ppm | -20°C ~ 70°C |
| FD2600032 | Diodes晶振 | SaRonix-eCera™ FD | 26MHz | ±20ppm | -20°C ~ 70°C |
| FD2600033 | Diodes晶振 | SaRonix-eCera™ FD | 26MHz | ±25ppm | -40°C ~ 85°C |
| FD2700036 | Diodes晶振 | SaRonix-eCera™ FD | 27MHz | ±20ppm | -20°C ~ 70°C |
| FD2700042 | Diodes晶振 | SaRonix-eCera™ FD | 27MHz | ±25ppm | -40°C ~ 85°C |
| FD3300020 | Diodes晶振 | SaRonix-eCera™ FD | 33MHz | ±20ppm | -20°C ~ 70°C |
| FD3330023 | Diodes晶振 | SaRonix-eCera™ FD | 33.333MHz | ±20ppm | -20°C ~ 70°C |
AEC-Q200合格
32.768千赫
1.8V CMOS兼容邏輯電平
低功耗待機模式(< 10 μ A)
低功率有源模式(< 0.17mA典型值)
用于標準回流和洗滌技術
無鉛和RoHS/綠色環保
| FD3330025 | Diodes晶振 | SaRonix-eCera™ FD | 33.333333MHz | ±20ppm | -20°C ~ 70°C |
| FD3720001 | Diodes晶振 | SaRonix-eCera™ FD | 37.2MHz | ±20ppm | -20°C ~ 70°C |
| FD3840012 | Diodes晶振 | SaRonix-eCera™ FD | 38.4MHz | ±20ppm | -20°C ~ 70°C |
| FD3840014 | Diodes晶振 | SaRonix-eCera™ FD | 38.4MHz | ±25ppm | -40°C ~ 85°C |
| FD4000106 | Diodes晶振 | SaRonix-eCera™ FD | 40MHz | ±20ppm | -20°C ~ 70°C |
| FD4000136 | Diodes晶振 | SaRonix-eCera™ FD | 40MHz | ±20ppm | -20°C ~ 70°C |
| FD5000038 | Diodes晶振 | SaRonix-eCera™ FD | 50MHz | ±20ppm | -20°C ~ 70°C |
| FD5400016 | Diodes晶振 | SaRonix-eCera™ FD | 54MHz | ±20ppm | -20°C ~ 70°C |
| FD5780001 | Diodes晶振 | SaRonix-eCera™ FD | 57.875MHz | ±20ppm | -20°C ~ 70°C |
| FD7500012 | Diodes晶振 | SaRonix-eCera™ FD | 75MHz | ±20ppm | -20°C ~ 70°C |
| FD8000008 | Diodes晶振 | SaRonix-eCera™ FD | 80MHz | ±25ppm | -20°C ~ 70°C |
| FD8500001 | Diodes晶振 | SaRonix-eCera™ FD | 85MHz | ±25ppm | -20°C ~ 70°C |
| FDA000017 | Diodes晶振 | SaRonix-eCera™ FD | 100MHz | ±50ppm | -20°C ~ 70°C |
| FDA000018 | Diodes晶振 | SaRonix-eCera™ FD | 100MHz | ±25ppm | -20°C ~ 70°C |
| FDA000019 | Diodes晶振 | SaRonix-eCera™ FD | 100MHz | ±50ppm | -40°C ~ 85°C |
| FDA000020 | Diodes晶振 | SaRonix-eCera™ FD | 100MHz | ±50ppm | -40°C ~ 85°C |
| FDA000021 | Diodes晶振 | SaRonix-eCera™ FD | 100MHz | ±50ppm | -40°C ~ 85°C |
| FDA000022 | Diodes晶振 | SaRonix-eCera™ FD | 100MHz | ±50ppm | -20°C ~ 70°C |
| FDA620005 | Diodes晶振 | SaRonix-eCera™ FD | 106.25MHz | ±50ppm | -20°C ~ 70°C |
| FDA620006 | Diodes晶振 | SaRonix-eCera™ FD | 106.25MHz | ±25ppm | -20°C ~ 70°C |
| FDA620007 | Diodes晶振 | SaRonix-eCera™ FD | 106.25MHz | ±50ppm | -40°C ~ 85°C |

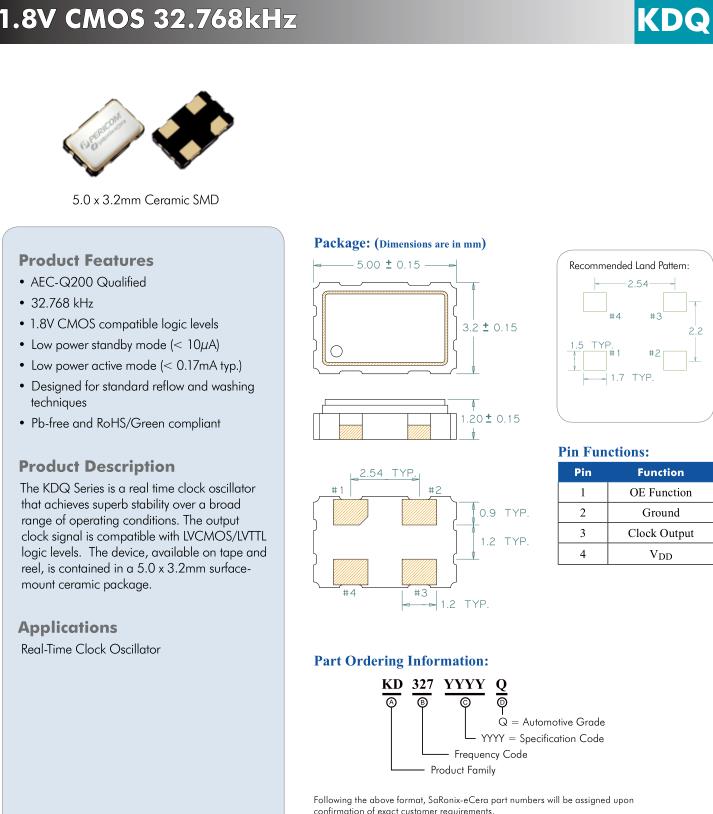

KDQ系列是一款實時時鐘振蕩器這在廣闊的土地上實現了極好的穩定性操作條件的范圍。輸出時鐘信號兼容LVCMOS/LVTTL邏輯水平。設備，可在磁帶和卷軸，是包含在一個5.0 × 3.2mm的表面-陶瓷封裝。
應用程序
實時時鐘振蕩器
