更多>>日蝕新型32.768K時鐘振蕩器編碼大曝光EB13K4D2H-32.768K
來源：http://www.jqhs.com.cn 作者：yiuus 2022年08月02
Ecliptek is a recognized market leader in the frequency control market. The Ecliptek brand specializes in quick-turn programmable crystal and MEMS oscillator devices, enabling a faster time to market and eliminating long lead times. Ecliptek is powered by Abracon, which provides the latest technical design support and global supply chain flexibility to solve customers’ unique challenges of today.
Ecliptek是頻率控制市場公認的市場領導者。Ecliptek品牌專注于快速轉向可編程晶體和MEMS振蕩器,有源晶振設備，可加快上市時間并消除較長的交貨時間。Ecliptek由Abracon提供支持，Abracon提供最新的技術設計支持和全球供應鏈靈活性，以解決當今客戶的獨特挑戰。日蝕新型32.768K時鐘振蕩器編碼大曝光EB13K4D2H-32.768K
Ecliptek oscillator broad product offerings include standard XO, VCXO, TCXO, OCXO, VCTXO, VCOCXO and MEMS types with SMD or through-hole mounting. The collection includes options optimized for small size, long battery life, ultra-low noise performance, and industrial temperature stability & durability, and precision timing.
Ecliptek的晶體振蕩器產品種類繁多，包括標準XO、VCXO、TCXO、OCXO、VCTXO、VCOCXO 和具有SMD或通孔安裝的MEMS類型。該系列包括針對小尺寸、長電池壽命、超低噪聲性能、工業溫度穩定性和耐用性以及精確計時而優化的選項。
Ecliptek是頻率控制市場公認的市場領導者。Ecliptek品牌專注于快速轉向可編程晶體和MEMS振蕩器,有源晶振設備，可加快上市時間并消除較長的交貨時間。Ecliptek由Abracon提供支持，Abracon提供最新的技術設計支持和全球供應鏈靈活性，以解決當今客戶的獨特挑戰。日蝕新型32.768K時鐘振蕩器編碼大曝光EB13K4D2H-32.768K
Ecliptek oscillator broad product offerings include standard XO, VCXO, TCXO, OCXO, VCTXO, VCOCXO and MEMS types with SMD or through-hole mounting. The collection includes options optimized for small size, long battery life, ultra-low noise performance, and industrial temperature stability & durability, and precision timing.
Ecliptek的晶體振蕩器產品種類繁多，包括標準XO、VCXO、TCXO、OCXO、VCTXO、VCOCXO 和具有SMD或通孔安裝的MEMS類型。該系列包括針對小尺寸、長電池壽命、超低噪聲性能、工業溫度穩定性和耐用性以及精確計時而優化的選項。
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD)
石英晶體時鐘振蕩器XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 2.5mm x 3.2mm
Ecliptek公司致力于保護環境，作為負責任的企業公民。Ecliptek一直在努力解決電子行業的RoHS和無pb合規問題。日蝕晶振公司的目標是逐步消除不兼容產品的使用，為我們的客戶提供符合要求的替代產品，以及發布的生命周期的結束，從而提供足夠的時間來批準兼容的產品。日蝕新型32.768K時鐘振蕩器編碼大曝光EB13K4D2H-32.768K
石英晶體時鐘振蕩器XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 2.5mm x 3.2mm
| EB13K2C2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±100ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K2D2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±50ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K2E2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±25ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K2F2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±20ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K2G2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±100ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K2H2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±50ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K2J2H-32.768K | CMOS | 3.3Vdc | SMD 2.0mm x 2.5mm | ±25ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K4C2H-32.768K | CMOS | 3.3Vdc | SMD 2.5mm x 3.2mm | ±100ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K4D2H-32.768K | CMOS | 3.3Vdc | SMD 2.5mm x 3.2mm | ±50ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K4E2H-32.768K | CMOS | 3.3Vdc | SMD 2.5mm x 3.2mm | ±25ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K4G2H-32.768K | CMOS | 3.3Vdc | SMD 2.5mm x 3.2mm | ±100ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K4H2H-32.768K | CMOS | 3.3Vdc | SMD 2.5mm x 3.2mm | ±50ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K4J2H-32.768K | CMOS | 3.3Vdc | SMD 2.5mm x 3.2mm | ±25ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K5C2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±100ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K5D2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±50ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K5E2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±25ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K5F2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±20ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K5G2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±100ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K5H2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±50ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K5J2H-32.768K | CMOS | 3.3Vdc | SMD 3.2mm x 5.0mm | ±25ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |
| EB13K7C2H-32.768K | CMOS | 3.3Vdc | SMD 5.0mm x 7.0mm | ±100ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K7D2H-32.768K | CMOS | 3.3Vdc | SMD 5.0mm x 7.0mm | ±50ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K7E2H-32.768K | CMOS | 3.3Vdc | SMD 5.0mm x 7.0mm | ±25ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K7F2H-32.768K | CMOS | 3.3Vdc | SMD 5.0mm x 7.0mm | ±20ppm | 0°C to +70°C | 50 ±5(%) | ±5ppm |
| EB13K7G2H-32.768K | CMOS | 3.3Vdc | SMD 5.0mm x 7.0mm | ±100ppm | -40°C to +85°C | 50 ±5(%) | ±5ppm |

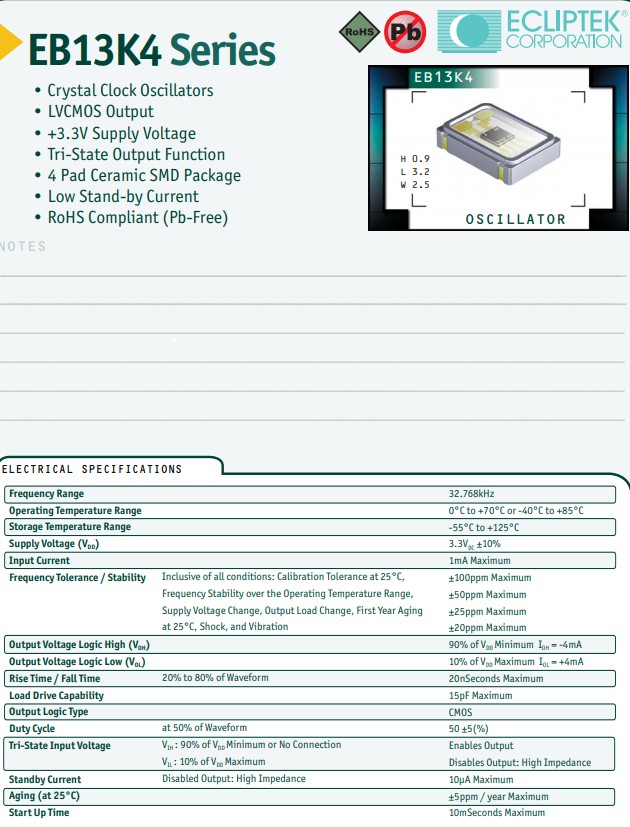

Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V DD )
Input Current
Frequency Tolerance / Stability
Output Voltage Logic High (V OH )
Output Voltage Logic Low (V OL )
Rise Time / Fall Time
Load Drive Capability
Output Logic Type
Duty Cycle
Tri-State Input Voltage
Standby Current
Aging (at 25°C)
Start Up Time
32.768kHz
0°C to +70°C or -40°C to +85°C
-55°C to +125°C
3.3V DC ±10%
1mA Maximum
±100ppm Maximum
±50ppm Maximum
±25ppm Maximum
±20ppm Maximum
90% of V DD Minimum I OH = -4mA
10% of V DD Maximum I OL = +4mA
20nSeconds Maximum
15pF Maximum
CMOS
50 ±5(%)
Enables Output
Disables Output: High Impedance
10µA Maximum
±5ppm / year Maximum
10mSeconds Maximum
