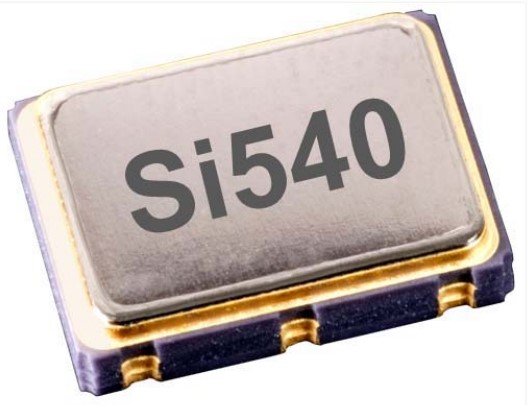

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振

產品型號：90782073
頻率：122.88 MHz
尺寸：5.0x3.2mm
產品介紹：思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振，進口晶振，Skyworks思佳訊晶振，型號：Si540，編碼為：540BAA122M880BBGR，頻率為：122.88MHz，小體...

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振，進口晶振，Skyworks思佳訊晶振，型號：Si540，編碼為：540BAA122M880BBGR，頻率為：122.88 MHz，小體積晶振尺寸：5.0x3.2mm封裝，六腳貼片晶振，LVDS輸出差分晶體振蕩器，石英晶振，有源晶振，差分晶振，石英晶體振蕩器。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，高精度，高性能等特點。應用于：100G/200G/400G OTN，10G/40G/100G光學以太網，3G-SDI/12G-SDI/24G-SDI廣播視頻，服務器、交換機、存儲、NIC、搜索加速，測試和測量，時鐘和數據恢復，F(xiàn)PGA/ASIC時鐘等應用。

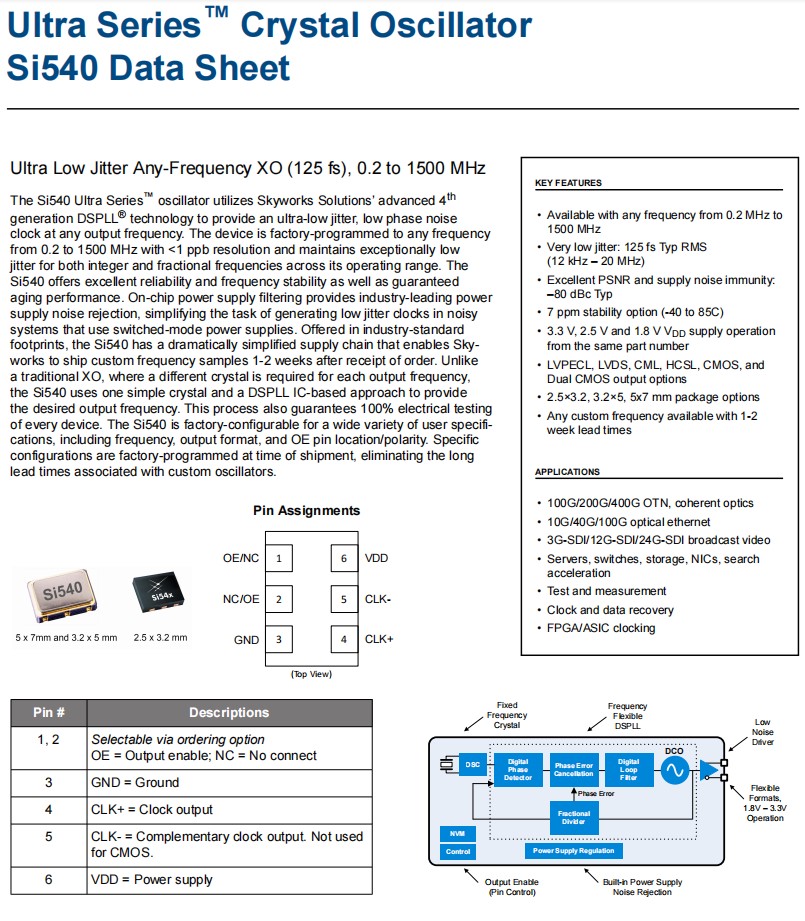

Si540超系列™振蕩器利用天空解決方案先進的第四代DSPLL®技術，在任何輸出頻率提供超低抖動、低相位噪聲時鐘。該設備被工廠編程到從0.2到1500 MHz的任何頻率，分辨率為<1 ppb，并在其工作范圍內對整數和分?jǐn)?shù)頻率保持異常低的抖動。Si540石英晶體振蕩器提供了卓越的可靠性和頻率穩定性，以及保證老化性能。片上電源濾波提供了行業領先的電源噪聲抑制，簡化了在使用切換模式電源的有噪聲系統中產生低抖動時鐘的任務。Si540具有行業標準的足跡，有一個大大簡化的供應鏈，使Skyworks能夠在收到訂單1-2周后運送定制頻率樣品。與傳統的XO不同，每個輸出頻率都需要不同的晶體，Si540使用一個簡單的晶體和一種基于DSPLL ic的方法來提供所需的輸出頻率。這個過程也保證了每個設備的100%的電氣測試。Si540可在工廠上配置各種用戶規格，包括頻率、輸出格式和OE引腳位置/極性。特定的配置是在裝運時由工廠編程的，消除了與自定義振蕩器相關的長交貨時間。

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振,參數表

Parameter	Symbol	Test Condition/Comment	Min	Typ	Max	Unit
Temperature Range	TA		–40		85	ºC
Frequency Range	FCLK	LVPECL, LVDS, CML	122.88			MHz
		HCSL	0.2	—	400	MHz
		CMOS, Dual CMOS	0.2		250	MHz
Supply Voltage	V DD	3.3 V	3.135	3.3	3.465	V
		2.5 V	2.375	2.5	2.625	V
		1.8 V	1.71	1.8	1.89	V
Supply Current	IDD	LVPECL (output enabled)		100	145	mA
		LVDS/CML (output enabled)	—	75	111	mA
		HCSL (output enabled)		80	125	mA
		HCSL-Fast (output enabled)	—	88	137	mA
		CMOS (output enabled)		74	108	mA
		Dual CMOS (output enabled)	—	80	125	mA
		Tristate Hi-Z (output disabled)		64	100	mA
Temperature Stability		Frequency stability Grade A	–20	—	20	ppm
		Frequency stability Grade B	–10		10	ppm
		Frequency stability Grade C	–7	—	7	ppm
Total Stability1	F STAB	Frequency stability Grade A	–50		50	ppm
		Frequency stability Grade B	–25	—	25	ppm
		Frequency stability Grade C	–20		20	ppm
Rise/Fall Time (20% to 80% VPP)	TR/T F	LVPECL/LVDS/CML	—	—	350	ps
		CMOS / Dual CMOS (CL = 5 pF)	—	0.5	1.5	ns
		HCSL, FCLK>50 MHz	—	—	550	ps
		HCSL-Fast, FCLK>50 MHz	—	—	275	ps
Duty Cycle	DC	All formats	45	—	55	%
Output Enable (OE)2	VIH		0.7 × V DD			V
	VIL		—	—	0.3 × V DD	V
	TD	Output Disable Time, FCLK>10 MHz	—	—	3	µs
	TE	Output Enable Time, FCLK>10 MHz			20	µs
Powerup Time	tOSC	Time from 0.9 × V DD until output fre- quency (FCLK) within spec	—	—	10	ms

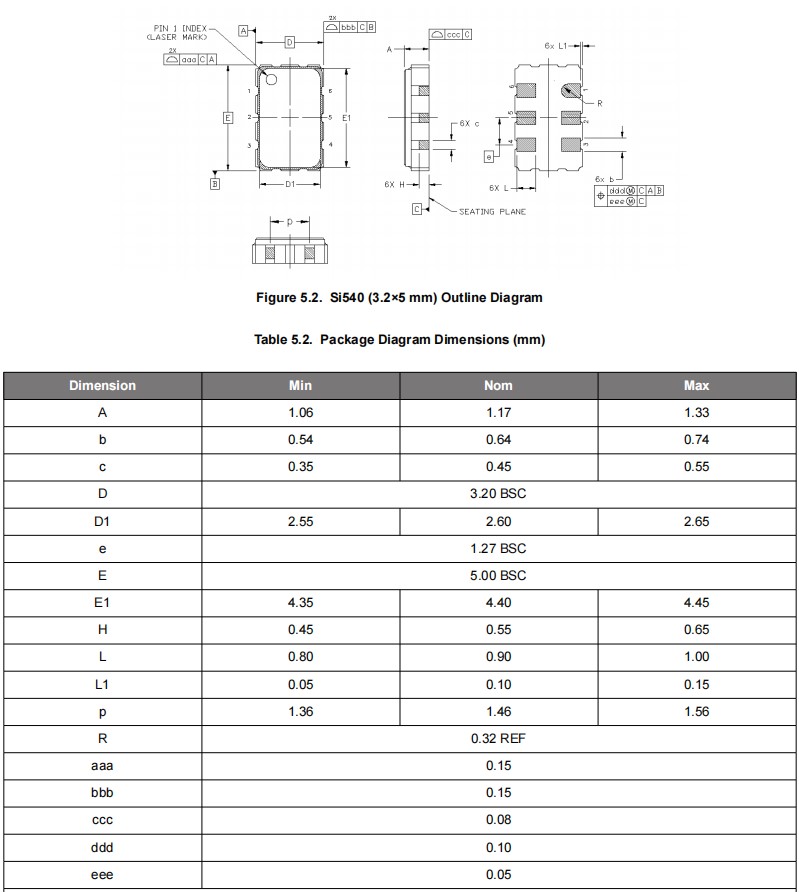

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振,尺寸圖

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振

產品特點：

可用于0.2MHz至1500MHz的任何頻率
極低抖動：125 fs典型RMS（12kHz–20MHz）
出色的PSNR和電源抗擾度：–80 dBc Typ
7ppm穩定性選項（-40至85攝氏度）
3.3V、2.5V和1.8V VDD電源操作來自相同的零件號
LVPECL、LVDS、CML、HCSL、CMOS和雙CMOS輸出選項
2.5×3.2、3.2×5、5x7 mm封裝選項貼片晶振
任何自定義頻率，交付周期為1-2周

Si540 XO支持多種選項，包括頻率、輸出格式和OE引腳位置/極性，如下圖所示。特定的設備配置在裝運時被編程到部件中，樣品可以在1-2周內提供。Skyworks解決方案提供了一個在線零件號配置實用程序來簡化這個過程。

編碼	晶振廠家	系列	頻率	輸出	電壓
540BAA000274BBG	Skyworks晶振	Si540	322.265625 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA125M000BBG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA100M000BBG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA122M880BBG	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA000244BBG	Skyworks晶振	Si540	148.351648 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA000127BBG	Skyworks晶振	Si540	644.53125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA100M000BBGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA106M250BAGR	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA10M0000BAGR	Skyworks晶振	Si540	10 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA125M000BBGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA125M000BAGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA38M400BBGR	Skyworks晶振	Si540	38.4 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M0000BAGR	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BAGR	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA80M0000BAGR	Skyworks晶振	Si540	80 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA96M0000BAGR	Skyworks晶振	Si540	96 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC116M000BAGR	Skyworks晶振	Si540	116 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC70M6560BBGR	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA122M880BBGR	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA106M250BBGR	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA80M0000BBGR	Skyworks晶振	Si540	80 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000BCGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BBA100M000BCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BBA100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000CCGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA33M3330BCGR	Skyworks晶振	Si540	33.333 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000ABG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000BBG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000BBG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000ABGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000BBGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000BBGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA100M000CCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BCG	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V ~ 3.3V
540BAA125M000BCG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BAA106M250BCG	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V ~ 3.3V
540BAA100M000BCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BAB20M0000CCG	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BCA25M0000CCG	Skyworks晶振	Si540	25 MHz	LVDS	1.8V ~ 3.3V
540BAA106M250BBG	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA80M0000BBG	Skyworks晶振	Si540	80 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BCGR	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V ~ 3.3V
540BAA125M000BCGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BAA100M000BCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BAA106M250BCGR	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V ~ 3.3V
540BCA25M0000CCGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V ~ 3.3V
540BAB20M0000CCGR	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BAA100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA106M250BAG	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA10M0000BAG	Skyworks晶振	Si540	10 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA38M400BBG	Skyworks晶振	Si540	38.4 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M0000BAG	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BAG	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA96M0000BAG	Skyworks晶振	Si540	96 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC116M000BAG	Skyworks晶振	Si540	116 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC70M6560BBG	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA74M2500CCGR	Skyworks晶振	Si540	74.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA70M6560BCGR	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA122M880ABG	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ABG	Skyworks晶振	Si540	52 MHz	LVDS	2.5V
540BBA100M000BCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BBA125M000BCG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BBA125M000CCG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000CCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA33M3330BCG	Skyworks晶振	Si540	33.333 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ACGR	Skyworks晶振	Si540	52 MHz	LVDS	1.8V ~ 3.3V
540BCD20M0000CCGR	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BCA100M000BCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCC25M0000CCGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA26M0000BCGR	Skyworks晶振	Si540	26 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCC25M0000ACGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCB100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA100M000ACGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA122M880ABGR	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ABGR	Skyworks晶振	Si540	52 MHz	LVDS	2.5V
540BCA122M880ACG	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V ~ 3.3V
540BBA250M000ACG	Skyworks晶振	Si540	250 MHz	LVDS	1.8V ~ 3.3V
540BAA270M000ACG	Skyworks晶振	Si540	270 MHz	LVDS	1.8V ~ 3.3V
540BAA25M0000CCGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ACG	Skyworks晶振	Si540	52 MHz	LVDS	1.8V ~ 3.3V
540BCD20M0000CCG	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BCC25M0000CCG	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA70M6560BCG	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA100M000ACG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCB100M000CCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA74M2500CCG	Skyworks晶振	Si540	74.25 MHz	LVDS	1.8V, 2.5V, 3.3V
