VCXO晶振VG5032EFN,X1G0054710010,EPSON低抖動LV-PECL振蕩器

產品型號：13021925
頻率：122.880000MHz
尺寸：5.0x3.2mm
產品介紹：VCXO晶振VG5032EFN,X1G0054710010,EPSON低抖動LV-PECL振蕩器，日本進口晶振，EPSON愛普生株式會社，晶振型號VG5032EFN，編碼為：X1G0054710010，頻率為：122.8800...

VCXO晶振VG5032EFN,X1G0054710010,EPSON低抖動LV-PECL振蕩器，日本進口晶振，EPSON愛普生株式會社，晶振型號VG5032EFN，編碼為：X1G0054710010，頻率為：122.880000 MHz，小體積尺寸：5.0x3.2mm，六腳貼片晶振，VCXO壓控晶體振蕩器，LVDS輸出差分晶振，有源晶振，石英晶振，石英晶體振蕩器，具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低耗能，低損耗，低相位噪聲，低電平，抗干擾能力強等特點，能夠很容易地識別小信號，能夠從容精確地處理'雙極'信號，對外部電磁干擾（EMI）是高度免疫的。被廣泛用于通訊設備，無線網絡，藍牙模塊，物聯網，6G路由器，以太網，車載電子，安防設備，醫療設備等應用。

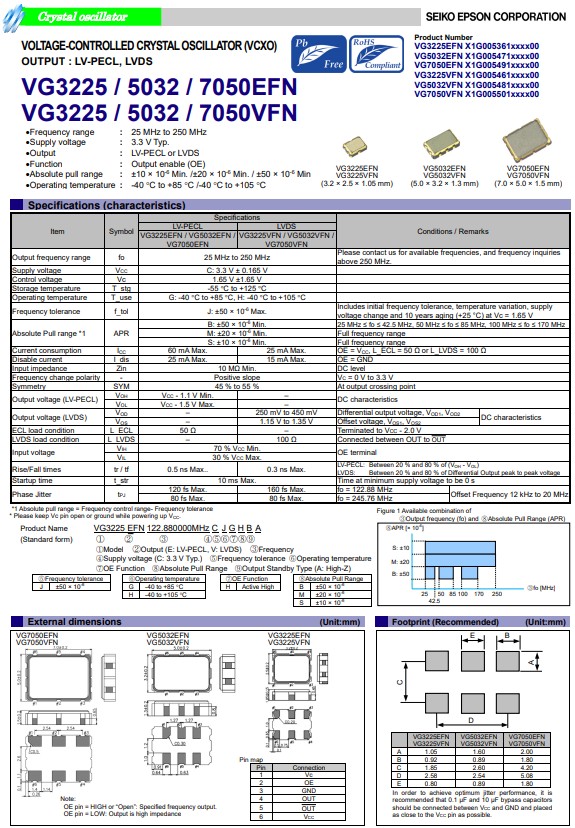

VCXO晶振VG5032EFN,X1G0054710010,EPSON低抖動LV-PECL振蕩器，參數表

項目	Item	Symbol	LV-PECL	LVDS	Conditions / Remarks
			VG3225EFN / VG5032EFN /	VG3225VFN / VG5032VFN /
			VG7050EFN	VG7050VFN
Output frequency range		fo	25 MHz to 250 MHz		Please contact us for available frequencies, and frequency inquiries above 250 MHz.
Supply voltage		VCC	C: 3.3 V ± 0.165 V
Control voltage		Vc	1.65 V ±1.65 V
Storage temperature		T_stg	-55 °C to +125 °C
Operating temperature		T_use	G: -40 °C to +85 °C, H: -40 °C to +105 °C
Frequency tolerance		f_tol	J: ±50 × 10-6 Max.		Includes initial frequency tolerance, temperature variation, supply voltage change and 10 years aging (+25 °C) at Vc = 1.65 V
			B: ±50 × 10-6 Min.		25 MHz ≤ fo ≤ 42.5 MHz, 50 MHz ≤ fo ≤ 85 MHz, 100 MHz ≤ fo ≤ 170 MHz
Absolute Pull range *1		APR	M: ±20 × 10-6 Min.		Full frequency range
			S: ±10 × 10-6 Min.		Full frequency range
Current consumption		ICC	60 mA Max.	25 mA Max.	OE = VCC, L_ECL = 50 Ω or L_LVDS = 100 Ω
Disable current		I_dis	25 mA Max.	15 mA Max.	OE = GND
Input impedance		Zin	10 MΩ Min.		DC level
Frequency change polarity		-	Positive slope		VC = 0 V to 3.3 V
Symmetry		SYM	45 % to 55 %		At output crossing point
Output voltage (LV-PECL)		VOH	VCC - 1.1 V Min.	–	DC characteristics
		VOL	VCC - 1.5 V Max.	–
Output voltage (LVDS)		VOD	–	250 mV to 450 mV	Differential output voltage, VOD1, VOD2		DC characteristics
		VOS	–	1.15 V to 1.35 V	Offset voltage, VOS1, VOS2
ECL load condition		L_ECL	50 Ω	–	Terminated to VCC - 2.0 V
LVDS load condition		L_LVDS	–	100 Ω	Connected between OUT to OUT
Input voltage		VIH	70 % VCC Min.		OE terminal
		VIL	30 % VCC Max.
Rise/Fall times		tr / tf	0.5 ns Max..	0.3 ns Max.	LV-PECL: Between 20 % and 80 % of (VOH - VOL)
					LVDS: Between 20 % and 80 % of Differential Output peak to peak voltage
Startup time		t_str	10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter		tPJ	120 fs Max.	160 fs Max.	fo = 122.88 MHz	Offset Frequency 12 kHz to 20 MHz
			80 fs Max.	80 fs Max.	fo = 245.76 MHz

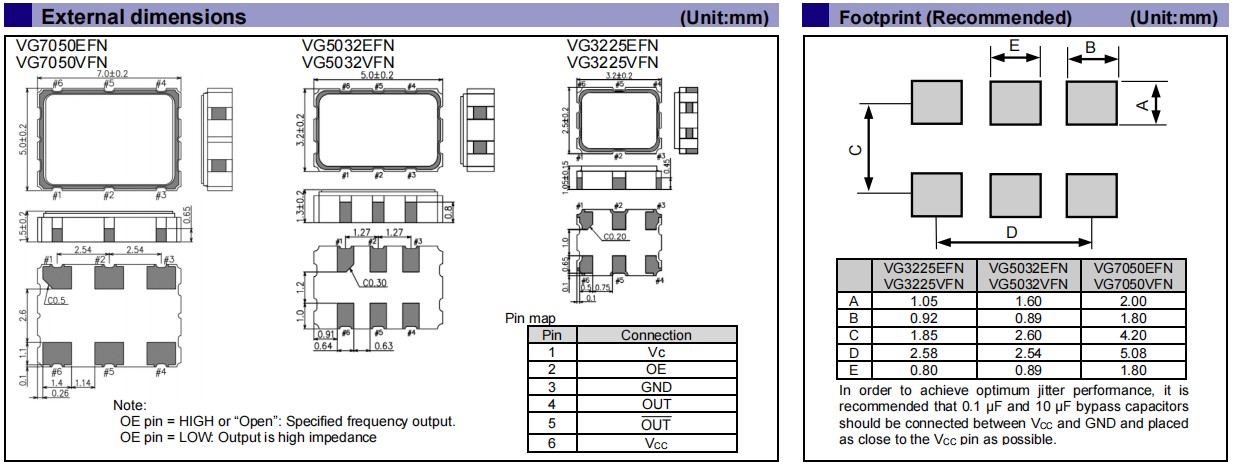

VCXO晶振VG5032EFN,X1G0054710010,EPSON低抖動LV-PECL振蕩器，尺寸圖

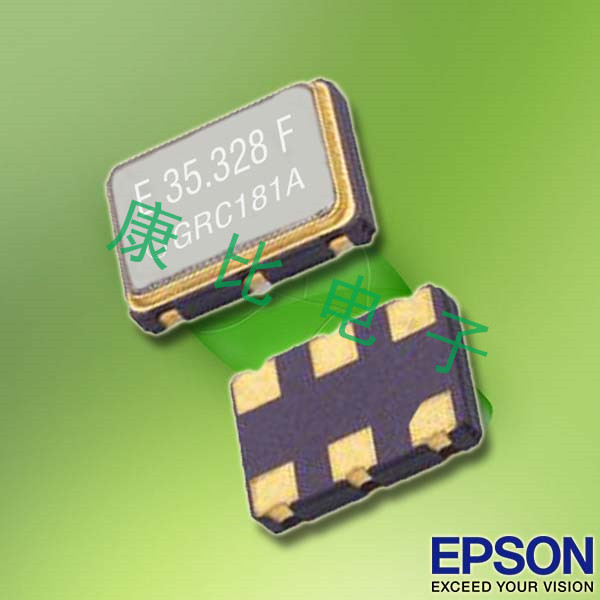

VCXO晶振VG5032EFN,X1G0054710010,EPSON低抖動LV-PECL振蕩器
晶體振蕩器作為一種高穩定頻率源，廣泛應用于各種儀器設備中。其中，壓控晶體振蕩器(VCXO)因其頻率可調而成為各種接收機和轉發器中不可或缺的關鍵部件。在這些器件中，為了補償晶體振蕩器的長期老化、發射和接收信號之間的多普勒頻移等因素，通常要求壓控振蕩器具有較寬的電壓控制范圍；而且為了適應野外和空間的工作環境，還要求在較寬的溫度范圍內具有良好的頻率和溫度穩定性。

愛普生晶振	型號	頻率	尺寸	輸出	電壓
X1G0049110005	VG5032EDN	130.031746 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110006	VG5032EDN	148.351600 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110007	VG5032EDN	100.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110008	VG5032EDN	102.253100 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110009	VG5032EDN	120.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110010	VG5032EDN	122.880000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110011	VG5032EDN	153.600000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110012	VG5032EDN	125.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110013	VG5032EDN	155.520000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110014	VG5032EDN	156.250000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110015	VG5032EDN	150.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110016	VG5032EDN	160.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110017	VG5032EDN	148.500000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110018	VG5032EDN	161.132800 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110019	VG5032EDN	165.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110020	VG5032EDN	92.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110021	VG5032EDN	97.792000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110022	VG5032EDN	98.304000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110024	VG5032EDN	106.250000 MHz	有源晶振	LV-PECL	3.135 to 3.465 V
X1G0049110025	VG5032EDN	108.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110030	VG5032EDN	100.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110031	VG5032EDN	122.880000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710006	VG5032EFN	156.250000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710009	VG5032EFN	200.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710010	VG5032EFN	122.880000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710011	VG5032EFN	125.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710012	VG5032EFN	148.351600 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710013	VG5032EFN	148.351648 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710014	VG5032EFN	148.500000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710017	VG5032EFN	156.250000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710020	VG5032EFN	100.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710021	VG5032EFN	155.520000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0054710601	VG5032EFN	204.800000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
