X1G0042610011,SG5032VAN無線網絡6G晶振,EPSON差分晶體振蕩器

產品型號：84235754
頻率：148.500MHz
尺寸：5.0x3.2mm
產品介紹：X1G0042610011,SG5032VAN無線網絡6G晶振,EPSON差分晶體振蕩器，日本進口晶振，EPSON愛普生晶振，型號SG5032VAN，編碼為：X1G0042610011，頻率為：148.500000MHz，...

X1G0042610011,SG5032VAN無線網絡6G晶振,EPSON差分晶體振蕩器，日本進口晶振，EPSON愛普生晶振，型號SG5032VAN，編碼為：X1G0042610011，頻率為：148.500000MHz，小體積尺寸：5.0x3.2mm，六腳貼片晶振，LVDS輸出差分晶振，有源晶振，石英晶振，石英晶體振蕩器，SPXO晶體振蕩器，能夠很容易地識別小信號，能夠從容精確地處理'雙極'信號，對外部電磁干擾（EMI）是高度免疫的。有源晶振具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低耗能，低損耗，低相位噪聲，低電平，抗干擾能力強等特點，被廣泛用于通訊設備，無線網絡，藍牙模塊，物聯網，6G路由器，以太網，車載電子，安防設備，醫療設備等應用。

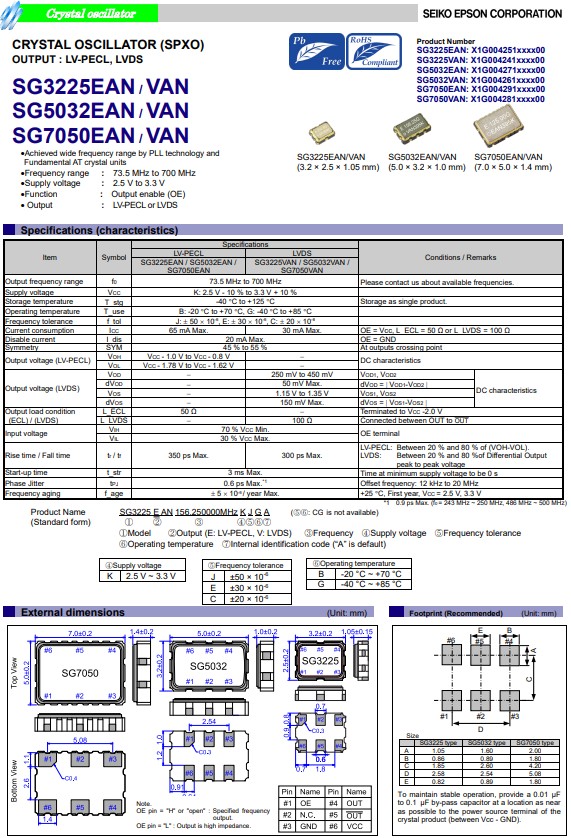

X1G0042610011,SG5032VAN無線網絡6G晶振,EPSON差分晶體振蕩器，參數表

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN	SG3225VAN
		SG5032EAN	SG5032VAN
		SG7050EAN	SG7050VAN
Output frequency range	f0	73.5 MHz to 700 MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC = ±10 %
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C
		G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6
		E : ±30 × 10-6
		J : ±50 × 10-6
Current consumption	ICC	65 mA Max.	30 mA Max.	OE = VCC
				L_ECL = 50 Ω or L_LVDS = 100 Ω
				f0 = 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC - 1.0 V to VCC - 0.8 V	-	DC characteristics
(LV-PECL)	VOL	VCC - 1.78 V to VCC -1.62 V	-
Output voltage	VOD	-	250 mV to 450 mV	VOD1 , VOD2	DC characteristics
(LVDS)	dVOD	-	50 mV Max.	dVOD = \| VOD1 - VOD2 \|
	VOS	-	1.15 V to 1.35 V	VOS1 , VOS2
	dVOS	-	150 mV Max.	dVOS = \| VOS1 - VOS2 \|
Output load condition	L_ECL	50 Ω	-	Terminated to VCC - 2.0 V
(ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT to OUT
Input voltage	VIH	70 % VCC Min.		OE terminal
	VIL	30 % VCC Max.
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH - VOL )
		-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency : 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6 / year Max.		+25 °C , VCC = 2.5 V or 3.3 V
				First year.

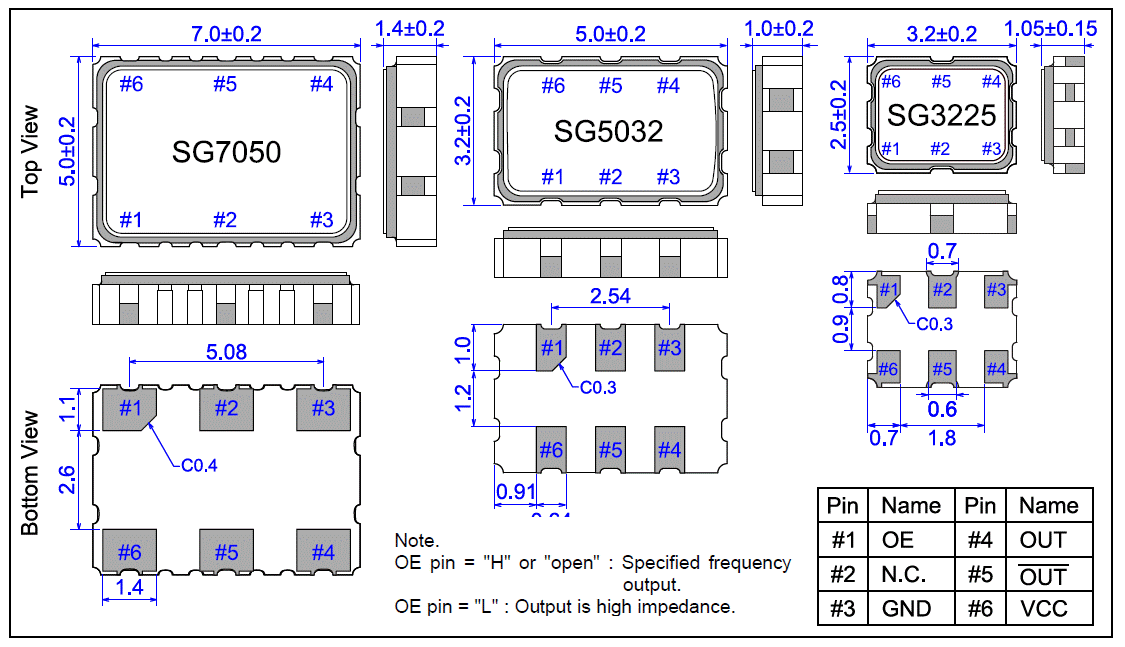

X1G0042610011,SG5032VAN無線網絡6G晶振,EPSON差分晶體振蕩器，尺寸圖

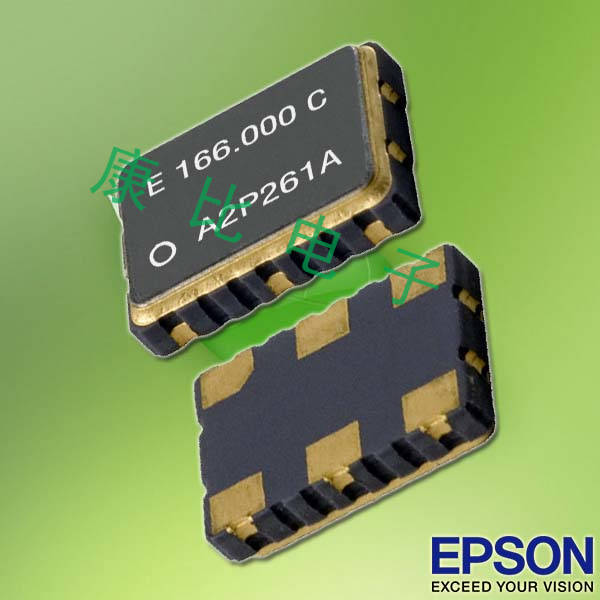

X1G0042610011,SG5032VAN無線網絡6G晶振,EPSON差分晶體振蕩器
差分晶振與普通晶振的區別：

1，首先是管腳封裝不同，普通晶振是4腳，差分晶振是6腳貼片晶振

2，其次是輸出信號不同，普通晶振是單端輸出，差分晶振則是差分輸出

3，應用場合不同，普通晶振用于低速（100MHz以下），差分晶振用于高速（100MHz以上）

4，抗干擾能力也不同，差分晶振的信號抗干擾能力明顯要優于普通晶振

5，價格不同，差分晶振的價格要遠高于普通晶振。

石英晶體振蕩器	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042610001	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610002	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610003	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610005	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610006	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610007	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610008	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610009	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610010	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610011	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610012	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610013	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610015	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610016	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610017	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610020	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610021	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610023	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610024	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610025	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610026	SG5032VAN	106.250000 MHz	石英晶振	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610027	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610028	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610029	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610030	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610031	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610033	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610034	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610035	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610036	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610039	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610040	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610042	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610043	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610044	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610045	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610046	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610047	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610048	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610049	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
