- 產品型號：15970623
- 頻率：32.768KHZ
- 尺寸：2.0*1.2mm
- 產品介紹：大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054，尺寸2012mm,頻率為32.768KHZ，負載電容12.5pF，精度20ppm，日本進口晶振，大真空進口晶振，日本KDS晶振，兩...
-
大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054
.jpg)
.jpg)
大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054，尺寸2012mm,頻率為32.768KHZ，負載電容12.5pF，精度20ppm，日本進口晶振，大真空進口晶振，日本KDS晶振，兩腳貼片晶振，無源晶振，音叉晶體，水晶振動子，32.768KHZ音叉晶振，無源貼片晶振，32.768K貼片晶振，SMD晶體，石英貼片晶振，2012mm無源晶振，計時器專用晶振，時鐘應用晶振，移動通信設備晶振，小型設備晶振，民用設備晶振，無線網絡晶振，娛樂設備晶振，高可靠晶振，高質量晶振，低損耗晶振，低功耗晶振，具有良好的可靠性能。小型設備晶振
計時器晶振產品適合用于移動通信設備、民用設備，小型設備，無線網絡，娛樂設備等領域。大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054.
.jpg)
大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054 參數表
|
|
|
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-0.04×10-6 |
|
|
|
|
|
|
|
|
|
|
|
|
.jpg)

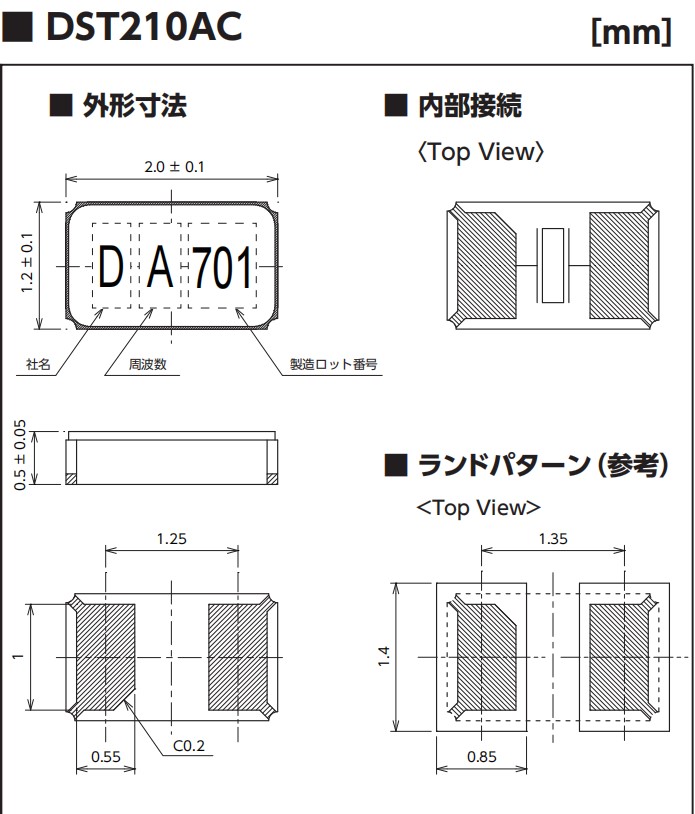

大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054 尺寸圖
大真空KDSCrystal,DST210AC計時器晶振,1TJ125DR1AC054
產品特性
超小型薄型、SMD晶振2012尺寸、厚度0.5mm
采用陶瓷封裝、金屬蓋，實現高精度、高可靠性
適用于移動通信設備、民用設備等多種用途
符合AEC-Q200標準
超小型薄型、SMD晶振2012尺寸、厚度0.5mm
采用陶瓷封裝、金屬蓋，實現高精度、高可靠性
適用于移動通信設備、民用設備等多種用途
符合AEC-Q200標準
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 | 溫度 |
| KDS晶振 | 1TJN090DP1A0004 | DST1210A | 1210 | 32.768K | 9PF | 20ppm | |
| KDS晶振 | 1TJL070DR1A0009 | DST1610AL | 1610 | 32.768K | 7PF | 20ppm | |
| KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 7BG03276A25 | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 7BG03276A3C | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 7BG03276A1X | DST1610A | 1610 | 32.768K | 7PF | 20ppm | |
| KDS晶振 | 1TJH090DP1A0006 | DST1610A | 1610 | 32.768K | 9PF | 20ppm | |
| KDS晶振 | 1TJ125DR1AC054 | DST210AC | 2012 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768k | 12.5PF | 20ppm | |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768k | 9PF | 20ppm | |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
| KDS晶振 | 1TJE090FR1AH00C | DST410S | 3215 | 32.768k | 9PF | 20ppm | |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768k | 12.5PF | 20PPM | |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768k | 6.0PF | 20PPM | |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768k | 7.5PF | 10PPM | |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768k | 12.5PF | 10PPM | |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768k | 10.0PF | -6/+2PPM | |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768k | 12.5PF | 30/40P | |
| KDS晶振 | 1TD060DHNS006 | DT-26 | 206 | 32.768KHZ | 6PF | 20PPM | |
| KDS晶振 | 1TD0701GNS002 | DT-26 | 206 | 32.768KHZ | 7PF | 20PPM | |
| KDS晶振 | 1TD080DHNS004 | DT-26 | 206 | 32.768KHZ | 8PF | 20PPM | |
| KDS晶振 | CFS20632768DZFT | CFS-206 | 206 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768k | 12.5PF | 20PPM | |
| KDS晶振 | 1TC125DFNS004 | DT-38 | 308 | 32.768k | 12.5PF | 20PPM | |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768k | 12.5PF | 1000PPM | |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768k | 12.5PF | 5PPM | |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768k | 12.5PF | +12/+28PPM | |
| KDS晶振 | 1TC125JHNS001 | DT-38 | 308 | 32.768KHZ | 12.5PF | 50PPM | |
| KDS晶振 | 1TC125AFWS027 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM | |
| KDS晶振 | 1TC070DFNS012 | DT-38 | 308 | 32.768KHZ | 7PF | 20PPM | |
| KDS晶振 | DT-38 | 308 | 32.768KHZ | 12.5PF | 200P | ||
| KDS晶振 | 1TJS060DJ4A739Q | DMX-26S | 8038 | 32.768K | 6PF | 20PPM | |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000M | 10PF | 20PPM | |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12M | 10PF | 20PPM | |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000M | 7PF | 20PPM | |
| KDS晶振 | 1C707600CC1B | DSX530GA | 5032 | 7.600M | 10PF | 30PPM | |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1ZCP37400AA0H | DSX211AL | 2016 | 37.400M | |||
| KDS晶振 | 1ZZNAE38400AB0A | DSX211SH | 2016 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1ZZHAM24000BB0B | DSX1612S | 1612 | 24.000M | |||
| KDS晶振 | 1ZZHAM26000AB0A | DSX1612S | 1612 | 26.000M | |||
| KDS晶振 | 1ZZCAA27120CD0A | DSX211G | 2016 | 27.12M | |||
| KDS晶振 | 1ZZNAE38400AA0C | DSX211SH | 2016 | 38.400M | |||
| KDS晶振 | 7AE01200A00 | DSX221G | 2520 | 12.000M | 8PF | ||
| KDS晶振 | 1ZCB26000AB0R | DSX221G | 2520 | 26.000M | |||
| KDS晶振 | 1ZCT24000BD0A | DSX320GE | 3225 | 24.000M | |||
| KDS晶振 | 1XTV36864HBA | DSA321SCM | 3225 | 36.864M | |||
| KDS晶振 | 1CG12288EE1C | DSX630G | 6035 | 12.288M | |||
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000M | 9PF | 10ppm | |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000M | 12PF | 15ppm | |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000M | 10PF | 30ppm | |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1C208000BC0R | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
| KDS晶振 | 1ZCM080000EE0A汽車 | DSX320G | 3225 | 8.000M | 8PF | 20PPM | 40~85度 |
| KDS晶振 | 1C208000EZ0G汽車 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
| KDS晶振 | 1N210000EE0X | DSX321G | 3225 | 10.000M | 10PF | ||
| KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
| KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
| KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
| KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
| KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
| KDS晶振 | 1ZCM12000BC0A | DSX320G | 3225 | 12.000M | 8PF | ||
| KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M |
