- 產品型號：1809367
- 頻率：27.000MHz
- 尺寸：2.0x1.6mm
- 產品介紹：FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振，美國進口晶振，FOX福克斯晶振，型號：FC1BQ，編碼為：FC1BQECMM27.0-T3，頻率為：27.000MHz，是一款小體積晶...
-
FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振
.jpg)
.jpg)
FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振，美國進口晶振，FOX福克斯晶振，型號：FC1BQ，編碼為：FC1BQECMM27.0-T3，頻率為：27.000MHz，是一款小體積晶振，尺寸：2.0x1.6mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，SMD晶振，石英晶振，石英晶體諧振器，無鉛晶振，工作溫度范圍：-40℃至+85℃。進口晶振，具有超小型，輕薄型，高精度，高性能，高品質，高穩定性，耐熱及耐環境特點。被廣泛應用于：通訊設備，無線網絡，藍牙模塊，智能穿戴設備，小型便捷式設備，智能手機，平板電腦，智能家居，游戲機設備，汽車電子，醫療設備，安防設備，遙控器設備應用等。
.jpg)
FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振,參數表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||
| Frequency Range | 27.000 MHz | ||||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -55°C ~ +125°C |
||||||||||||||
| Shunt Capacitance (CO) | 2 pF | ||||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||||
| Drive Level | 100µW | ||||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||||
| Insulation Resistance | 500Mohm Min | ||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
1 | ||||||||||||||
| Termination Finish | Fired Silver (Ag) Paste | ||||||||||||||
| Seal Method | Resin Seal | ||||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||||
| RoHS/REACH Compliant | Yes |
.jpg)

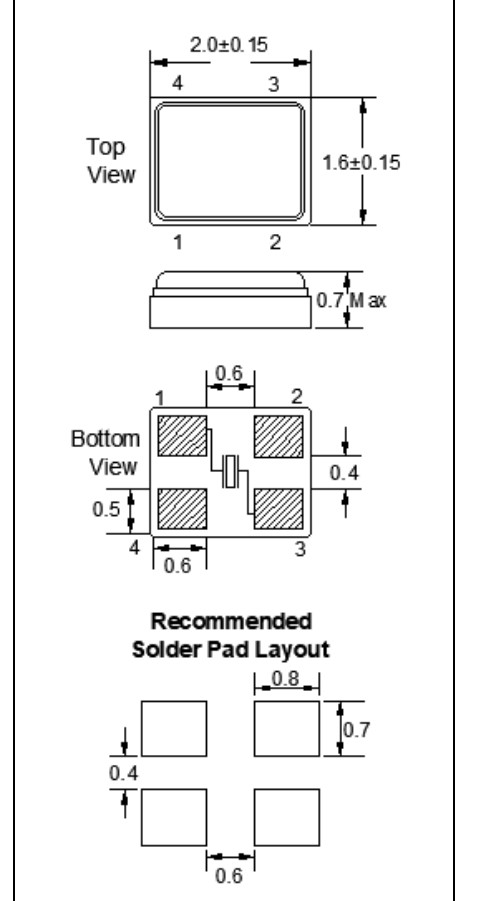

FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振,尺寸圖
FOX輕薄型晶振,FC1BQECMM27.0-T3,小型便捷式設備晶振
產品特點：
外形尺寸：2.0x1.6mm石英晶振
頻率范圍：16.000MHz~54.000MHz
公差低至10PPM
穩定性低至10PPM
溫度范圍寬至-40℃至+85℃
| 石英晶體諧振器 | 廠家 | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-18.432 | Fox晶振 | C5BQ | 18.432MHz | 4-SMD, No Lead | ±30ppm |
| FX252BS-24.000 | Fox晶振 | FX252B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | 福克斯晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-27.000 | Fox晶振 | FQ3225B | 27MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-10.000 | Fox晶振 | FX532B | 10MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-19.6608 | Fox晶振 | C5BQ | 19.6608MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-14.7456 | Fox晶振 | C5BQ | 14.7456MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| 617-24.572675-1 | Fox晶振 | FX216B | 24.572675MHZ | 4-SMD, No Lead | ±50ppm |
| FX532B-11.0592 | Fox晶振 | FX532B | 11.0592MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.000 | Fox晶振 | FX532B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.000 | Fox晶振 | FX425B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| 603-25-203 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±50ppm |
| 603-40-48 | Fox晶振 | FX325BS | 40MHz | 4-SMD, No Lead | ±20ppm |
| 603-25-261 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±20ppm |
