- 產品型號：81874274
- 頻率：18.000MHz
- 尺寸：4.0x2.5mm
- 產品介紹：Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振，AKER安碁晶振，型號：C4S系列，編碼為：C4S-18.000-20-3050-R，頻率為：18.0000MHz，石英晶振，小體積晶振尺寸...
-

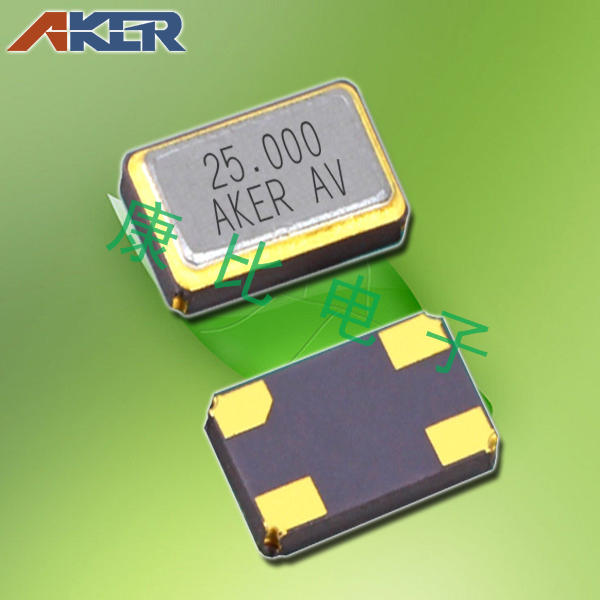

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振
.jpg)
.jpg)
Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振，AKER安碁晶振，型號：C4S系列，編碼為：C4S-18.000-20-3050-R，頻率為：18.0000MHz，石英晶振，小體積晶振尺寸：4.0x2.5mm封裝，表面安裝-4墊通用產品規格，四腳貼片晶振，無源晶振，石英晶體諧振器，石英貼片晶振，SMD石英晶體，具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。應用于：微處理器晶體單元，通訊設備，無線網絡，藍牙模塊，智能手機，平板電腦，車載電子，醫療設備，數碼電子等應用。
.jpg)

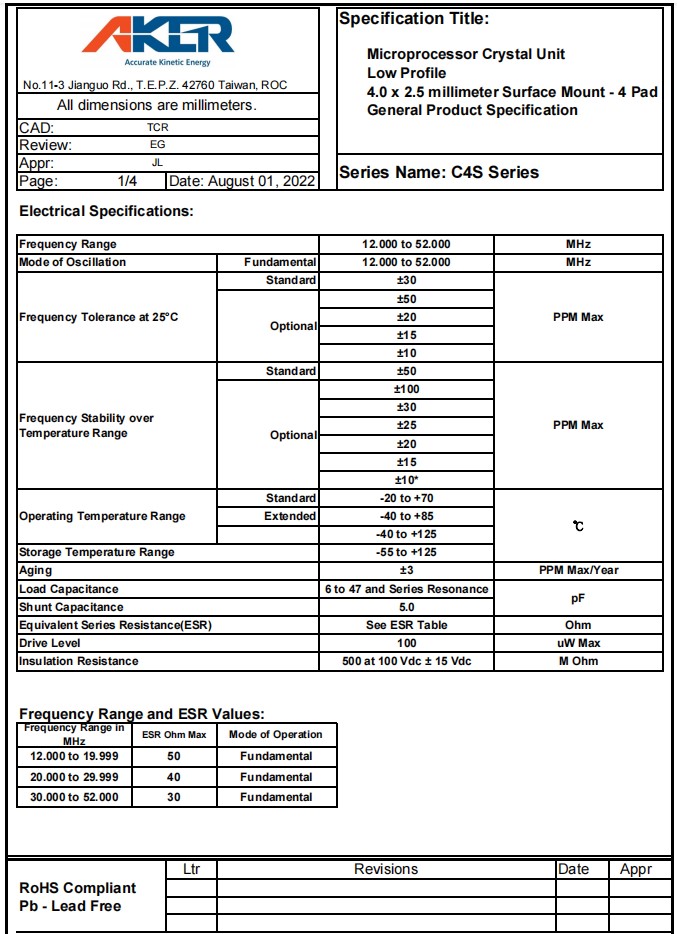

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振,參數表
| Frequency Range | MHz | ||
| Mode of Oscillation | Fundamental | 18.000MHz | MHz |
| Frequency Tolerance at 25°C | Standard | ±30 | PPM Max |
| Optional | ±50 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
|
Frequency Stability over Temperature Range |
Standard | ±50 | PPM Max |
| Optional | ±100 | ||
| ±30 | |||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| ±10* | |||
| Operating Temperature Range | Standard | -20 to +70 | ℃ |
| Extended | -40 to +85 | ||
| -40 to +125 | |||
| Storage Temperature Range | -55 to +125 | ||
| Aging | ±3 | PPM Max/Year | |
| Load Capacitance | 6 to 47 and Series Resonance | pF | |
| Shunt Capacitance | 5.0 | ||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | |
| Drive Level | 100 | uW Max | |
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |
.jpg)

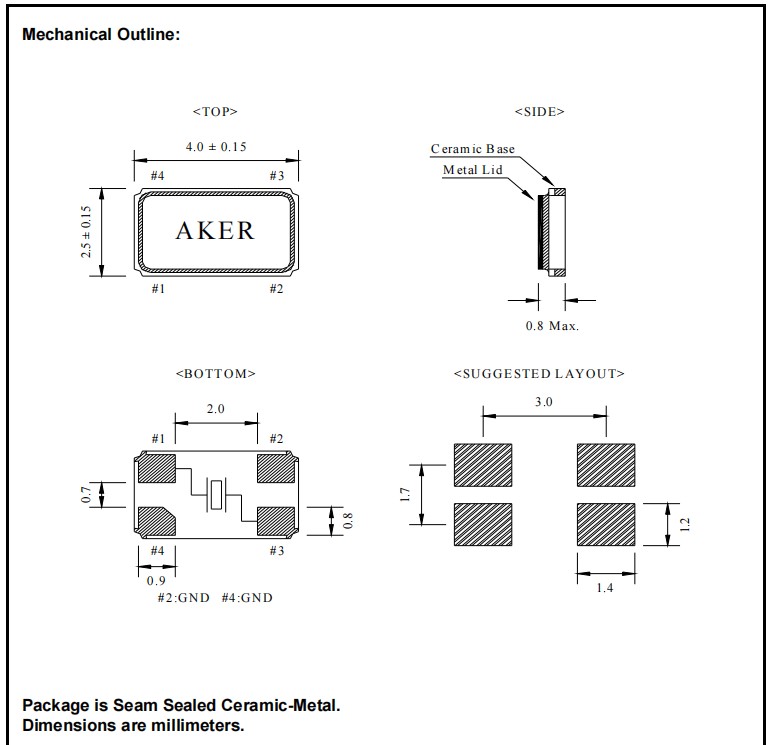

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振,尺寸圖
| 產品編碼 | 進口晶振 | 描述 | 系列 | 頻率 |
| C3E-16.000-18-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 18PF SMD | C3E | 16 MHz |
| C3E-20.000-12-3030-X-R | Aker安碁 | CRYSTAL 20.0000MHZ 12PF SMD | C3E | 20 MHz |
| C3E-16.000-12-3030-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-25.000-18-3030-R | Aker安碁 | CRYSTAL 25.0000MHZ 18PF SMD | C3E | 25 MHz |
| C3E-12.000-18-3030-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-18-2030-R | Aker安碁 | CRYSTAL 25.0000MHZ 18PF SMD | C3E | 25 MHz |
| C3E-12.000-8-3030-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-25.000-8-1010-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-25.000-8-1520-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-16.000-12-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-32.000-10-1010-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-12.000-8-1520-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-32.000-12-1010-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-25.000-8-1015-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-12.000-18-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-12-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 12PF SMD | C3E | 25 MHz |
| C3E-25.000-10-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C3E | 25 MHz |
| C3E-24.000-8-1015-R | Aker安碁 | CRYSTAL 24.0000MHZ 8PF SMD | C3E | 24 MHz |
| C3E-24.000-10-1010-R | 石英晶振 | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz |
| C3E-32.000-12-1530-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-12.000-8-1010-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-16.000-8-1015-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C3E | 16 MHz |
| C3E-32.000-10-1015-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-24.000-12-1530-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-12-3030-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-18-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 18PF SMD | C3E | 24 MHz |
| C3E-20.000-10-1530-X-R | Aker安碁 | CRYSTAL 20.0000MHZ 10PF SMD | C3E | 20 MHz |
| C3E-25.000-8-1530-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-24.000-12-1015-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-10-1015-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz |
| C3E-16.000-12-1015-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-40.000-10-1015-X-R | Aker安碁 | CRYSTAL 40.0000MHZ 10PF SMD | C3E | 40 MHz |
| C3E-32.000-8-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C3E | 32 MHz |
| C3E-32.000-10-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-32.000-12-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C2E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C2E | 24 MHz |
| C2E-16.000-12-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C2E | 16 MHz |
| C2E-25.000-10-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C2E | 25 MHz |
| C2E-16.000-8-1530-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C2E | 16 MHz |
