- 產品型號：2337480
- 頻率：156.250MHz
- 尺寸：7.0x5.0mm
- 產品介紹：艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，美國進口晶振，IDT艾迪悌晶振，型號4MA系列，編碼為：4MA156250Z4AA...
-

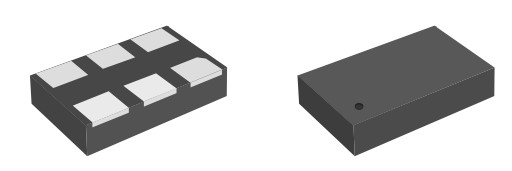

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器
.jpg)
.jpg)
艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，美國進口晶振，IDT艾迪悌晶振，型號4MA系列，編碼為：4MA156250Z4AACUGI8，頻率為：156.250MHz，小體積尺寸7.0x5.0mm，六腳貼片晶振，LVDS輸出差分晶振，有源晶振，石英晶體振蕩器，石英晶振，高性能差分MEMS振蕩器，穩定性： ± 50 ppm，電源電壓：2.5V和3.3V，標準包：5.0 x 3.2 mm；7.0 x 5.0 mm，RMS相位抖動：0.6 ps典型（12k至20MHz），工作溫度：- 40至85°C。貼片晶振具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低耗能，低損耗，低電平等特點。應用于：通訊設備，無線網絡，藍牙模塊，物聯網，汽車電子，醫療設備，數碼電子，路由器，交換機，數字通信系統，雷達，測量儀器，頻率合成器等。
.jpg)

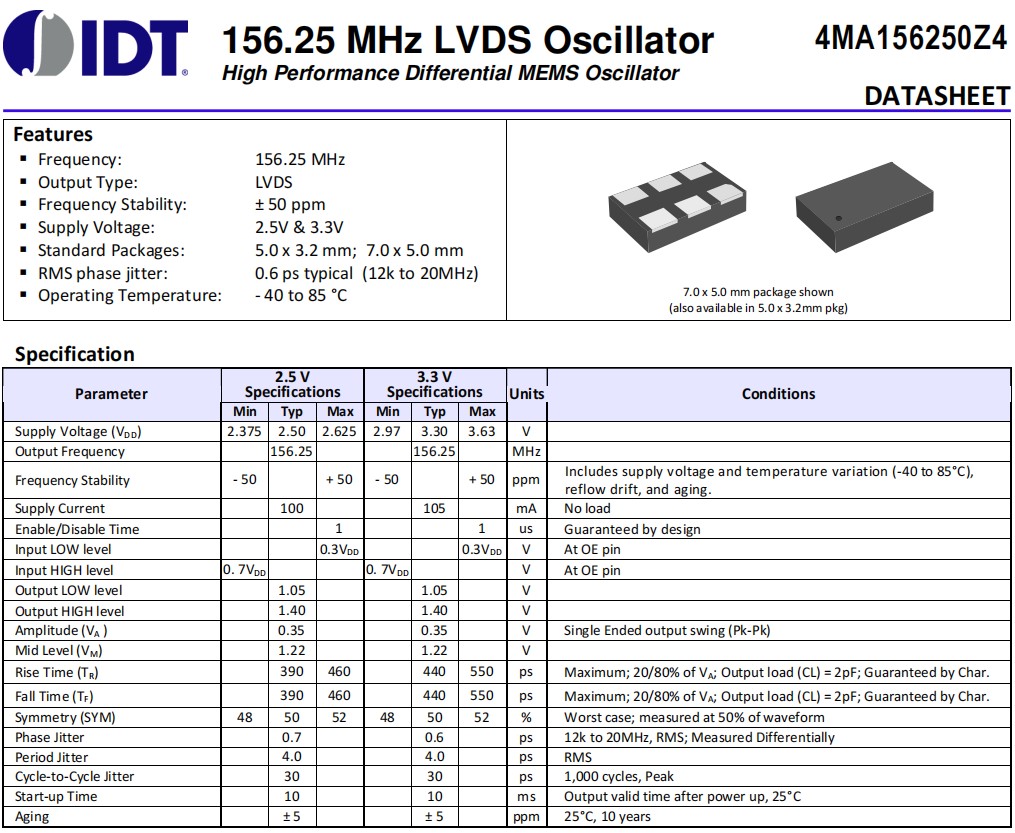

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，參數表
| Parameter |
2.5 V Specifications |
3.3 V Specifications |
Units | Conditions | |||||||||||||||||||||||||||||||||||||
| Min | Typ | Max | Min | Typ | Max | ||||||||||||||||||||||||||||||||||||
| Supply Voltage (VDD) | 2.375 | 2.50 | 2.625 | 2.97 | 3.30 | 3.63 | V | ||||||||||||||||||||||||||||||||||
| Output Frequency | 156.25 | 156.25 | MHz | ||||||||||||||||||||||||||||||||||||||
| Frequency Stability | - 50 | + 50 | - 50 | + 50 | ppm |
Includes supply voltage and temperature variation (-40 to 85°C), reflow drift, and aging. |
|||||||||||||||||||||||||||||||||||
| Supply Current | 100 | 105 | mA | No load | |||||||||||||||||||||||||||||||||||||
| Enable/Disable Time | 1 | 1 | us | Guaranteed by design | |||||||||||||||||||||||||||||||||||||
| Input LOW level | 0.3VDD | 0.3VDD | V | At OE pin | |||||||||||||||||||||||||||||||||||||
| Input HIGH level | 0. 7VDD | 0. 7VDD | V | At OE pin | |||||||||||||||||||||||||||||||||||||
| Output LOW level | 1.05 | 1.05 | V | ||||||||||||||||||||||||||||||||||||||
| Output HIGH level | 1.40 | 1.40 | V | ||||||||||||||||||||||||||||||||||||||
| Amplitude (VA ) | 0.35 | 0.35 | V | Single Ended output swing (Pk-Pk) | |||||||||||||||||||||||||||||||||||||
| Mid Level (VM) | 1.22 | 1.22 | V | ||||||||||||||||||||||||||||||||||||||
| Rise Time (TR) | 390 | 460 | 440 | 550 | ps | Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char. | |||||||||||||||||||||||||||||||||||
| Fall Time (TF) | 390 | 460 | 440 | 550 | ps | Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char. | |||||||||||||||||||||||||||||||||||
| Symmetry (SYM) | 48 | 50 | 52 | 48 | 50 | 52 | % | Worst case; measured at 50% of waveform | |||||||||||||||||||||||||||||||||
| Phase Jitter | 0.7 | 0.6 | ps | 12k to 20MHz, RMS; Measured Differentially | |||||||||||||||||||||||||||||||||||||
| Period Jitter | 4.0 | 4.0 | ps | RMS | |||||||||||||||||||||||||||||||||||||
| Cycle-to-Cycle Jitter | 30 | 30 | ps | 1,000 cycles, Peak | |||||||||||||||||||||||||||||||||||||
| Start-up Time | 10 | 10 | ms | Output valid time after power up, 25°C | |||||||||||||||||||||||||||||||||||||
| Aging | ± 5 | ± 5 | ppm | 25°C, 10 years | |||||||||||||||||||||||||||||||||||||
.jpg)

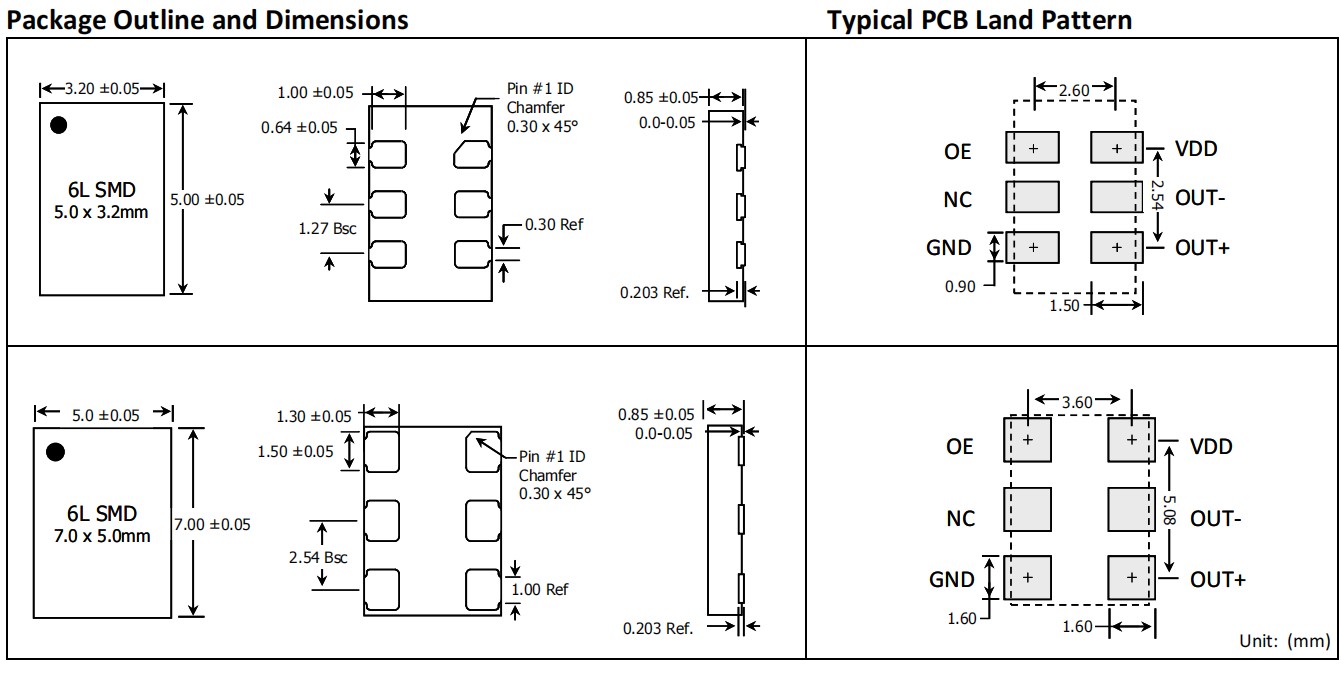

艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振，尺寸圖
艾迪悌7050mm晶振,4MA156250Z4AACUGI8,LVDS輸出晶體振蕩器,4MA150000Z4AACUGI8,低電壓6G晶振
差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性.
| 原廠代碼 | 品牌 | 有源晶振 | 型號 | 頻率 | 輸出 |
| 4MA150000Z4AACTGI | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA155520Z4AACTGI | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA156250Z4AACTGI | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| IDT4MA150000Z3AACUGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| IDT4MA156250Z3AACUGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA150000Z3AACUGI | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z4AACTGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA150000Z4AACUGI | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA150000Z4AACUGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA150000Z4BACTGI | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA150000Z4BACTGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA155520Z4AACTGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA155520Z4BACTGI | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA155520Z4BACTGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA156250Z3AACTGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA156250Z3AACUGI | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA156250Z3BACTGI | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA156250Z3BACTGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA156250Z3BACUGI | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA156250Z3BACUGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVPECL SMD | 4MA | 156.25MHz | LVPECL |
| 4MA156250Z4AACTGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA156250Z4AACUGI | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA156250Z4AACUGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA156250Z4BACTGI | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA156250Z4BACTGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA159375Z4AACTGI | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA159375Z4AACTGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA159375Z4BACTGI | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA159375Z4BACTGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA150000Y3AACTGI | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Y3AACTGI8 | IDT晶振 | 150.000MHZ LVPECL 進口晶振 | 4MA | 150MHz | LVPECL |
| 4MA150000Y3AACUGI | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Y3AACUGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z3AACTGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z3BACTGI | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z3BACTGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z3BACUGI | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z3BACUGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVPECL SMD | 4MA | 150MHz | LVPECL |
| 4MA150000Z4BACUGI | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA150000Z4BACUGI8 | IDT晶振 | OSC MEMS 150.000MHZ LVDS SMD | 4MA | 150MHz | LVDS |
| 4MA155520Z3AACTGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z3AACUGI | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z3AACUGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z3BACTGI | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z3BACTGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z3BACUGI | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z3BACUGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVPECL SMD | 4MA | 155.52MHz | LVPECL |
| 4MA155520Z4AACUGI | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA155520Z4AACUGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA155520Z4BACUGI | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA155520Z4BACUGI8 | IDT晶振 | OSC MEMS 155.52MHZ LVDS SMD | 4MA | 155.52MHz | LVDS |
| 4MA156250Z4BACUGI | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA156250Z4BACUGI8 | IDT晶振 | OSC MEMS 156.25MHZ LVDS SMD | 4MA | 156.25MHz | LVDS |
| 4MA159375Z3AACTGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z3AACUGI | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z3AACUGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z3BACTGI | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z3BACTGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z3BACUGI | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z3BACUGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVPECL SMD | 4MA | 159.375MHz | LVPECL |
| 4MA159375Z4AACUGI | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA159375Z4AACUGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA159375Z4BACUGI | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA159375Z4BACUGI8 | IDT晶振 | OSC MEMS 159.375MHZ LVDS SMD | 4MA | 159.375MHz | LVDS |
| 4MA156600Z4BACUGI | IDT晶振 | OSC MEMS | 4MA | 156.6MHz | LVDS |
| 4MA156600Z4BACUGI8 | IDT晶振 | OSC MEMS | 4MA | 156.6MHz | LVDS |
