首頁進口晶振 AEL晶振AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振

AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振

產品型號：75378263
頻率：20.000MHz
尺寸：5.0x3.2mm
產品介紹：AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM3晶振，編碼為：ELM3-20.000MHz-E7U-T，頻率為：20.000MHz，小...

AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM3晶振，編碼為：ELM3-20.000MHz-E7U-T，頻率為：20.000MHz，小體積晶振尺寸：5.0x3.2mm封裝，陶瓷SMD晶體，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振，工作溫度范圍：0℃至+70℃。具有超小型，輕薄型，高精度，高性能，高品質，高溫度等特點。石英晶振被廣泛應用于：通訊設備，汽車電子，導航儀，無線網絡，藍牙模塊，平板電腦，智能手機，智能家居，物聯網，醫療設備，安防設備等應用。

AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振,參數表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range
Fundamental
3rd Overtone

8.000 to 54.000 MHz
54.100 to 80.000 MHz

Operation Mode

Fundamental or
3rd Overtone

Operating Temperature

-10°C to +60°C, see options

Storage Temperature

-40°C to +90°C

Frequency Tolerance @ 25°C

± 50PPM, see options

Frequency Stability over the Operating
Temperature (ref. to +25°C)

± 50PPM, see options

Equivalent Series Resistance (ESR)
               8.000 ≤ F < 9.000 (Fund)
               9.000 ≤ F < 10.000 (Fund)
               10.000 ≤ F < 16.000 (Fund)
               16.000 ≤ F < 20.000 (Fund)
               20.000 ≤ F < 30.000 (Fund)
               30.000 ≤ F ≤ 54.000 (Fund)
               54.000 < F ≤ 80.000 (3rd OT)

140 Ω
120 Ω
60 Ω
40 Ω
30 Ω
25 Ω
60 Ω

Shunt Capacitance (C0)

7.0 pF

Load Capacitance (CL)

18 pF, Standard (see options if other than STD)

Drive Level

10 μW Typ
100 μW

Aging (@25°C±3°C First year )

±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes, , Pb in Glass, exemption 7C-I per RoHS II
Directive 2011/65/EU Annex

Pb Free

MSL

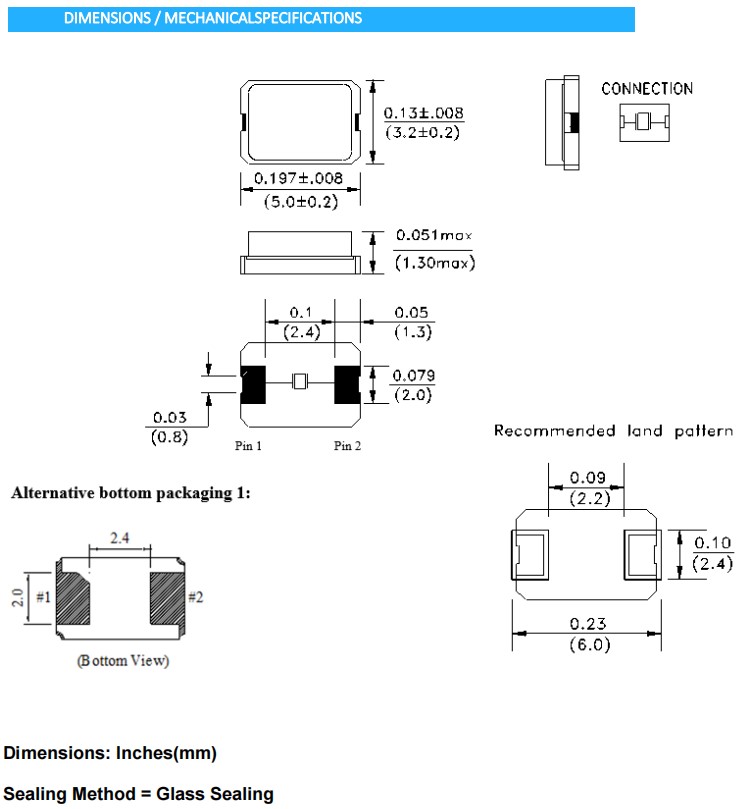

AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振,尺寸圖

AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振
產品特點：
SMD石英晶體諧振器
公差： ±15ppm可用
工作溫度-10°C至+60°C至-40°C至+125°C

產品編碼	進口晶振	頻率	長度	寬度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	10 MHz	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	12 MHz	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	13.56 MHz	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	30 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	8 MHz	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	16 MHz	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	32 MHz	2mm	1.6mm	0.5mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	12 MHz	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	14 MHz	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	24 MHz	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	8.057 MHz	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	12 MHz	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	12.5829 MHz	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	14.8 MHz	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	AEL晶振	18.432 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	26 MHz	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	24 MHz	1.6mm	1.2mm	0.4mm
X10M000000L121	AEL晶振	10 MHz	11.3mm	4mm	16mm
X10M000000S065	AEL晶振	10 MHz	12.3mm	4.6mm	4.3mm
X12M000000S081	AEL晶振	12 MHz	12.3mm	4.6mm	4.3mm
X12M000000S096	AEL晶振	12 MHz	3mm	2.5mm	0.6mm
X12M000000S118	AEL晶振	12 MHz	5mm	3.2mm	1mm
X12M582900S001	AEL晶振	12.5829 MHz	3mm	2.5mm	0.6mm
X13M560000S024	AEL晶振	13.56 MHz	12.3mm	4.6mm	4.3mm
X14M000000S003	AEL晶振	14 MHz	5mm	3.2mm	1mm
X14M800000S001	AEL晶振	14.8 MHz	3mm	2.5mm	0.6mm
X16M000000S182	AEL晶振	16 MHz	3mm	2.5mm	0.6mm
X16M000000S207	AEL晶振	16 MHz	2.5mm	2mm	0.5mm
X18M432000S049	AEL晶振	18.432 MHz	3mm	2.5mm	0.6mm
X21M948717S005	AEL晶振	21.948717 MHz	5mm	3.2mm	1mm
X24M000000S029	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
X24M000000S049	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
X24M000000S050	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
X24M000000S079	AEL晶振	24 MHz	5mm	3.2mm	1mm
X24M000000S094	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
X24M000000S303	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
X26M000000S301	AEL晶振	26 MHz	3mm	2.5mm	0.6mm
X30M000000S005	AEL晶振	30 MHz	12.3mm	4.6mm	4.3mm
X32K768L025	AEL晶振	32.768 kHz	2.1mm	6.2mm	13.2mm
X32K768L104	AEL晶振	32.768 kHz	2.9mm	8mm	17mm
X32K768S003	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S012	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S013	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S020	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S021	AEL晶振	32.768 kHz	4.1mm	1.5mm	0.7mm
X32K768S036	AEL晶振	32.768 kHz	10.41mm	4.06mm	3.56mm
X32K768S038	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S041	AEL晶振	32.768 kHz	4mm	1.5mm	0.7mm
X32K768S045	AEL晶振	32.768 kHz	2mm	6mm	9mm
X32K768S051	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S067	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S073	AEL晶振	32.768 kHz	6mm	2.5mm	8.3mm
X32K768S112	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S115	AEL晶振	32.768 kHz	8mm	4mm	2.4mm
X32K768S134	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S233	AEL晶振	32.768 kHz	10.4mm	4mm	3.5mm
X32K768S239	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S300	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32M000000S039	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
X32M000000S045	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
X32M000000S046	AEL晶振	32 MHz	2mm	1.6mm	0.5mm
X3M686400S004	AEL晶振	3.6864 MHz	11.8mm	5.5mm	2.1mm
X4M000000S002	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
X4M000000S018	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
X4M000000S084	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
X8M000000L023	AEL晶振	8 MHz	10.5mm	4.7mm	4mm
X8M000000S007	AEL晶振	8 MHz	12.3mm	4.6mm	4.3mm
X8M000000S045	AEL晶振	8 MHz	12mm	8mm	4.8mm
X8M057000S001	AEL晶振	8.057 MHz	5mm	3.2mm	1mm
