更多>>奇特的Cardinal溫補晶振編碼系列CTED-A5B3-156.25TS
來源：http://www.jqhs.com.cn 作者：lyis 2023年06月13
.jpg)

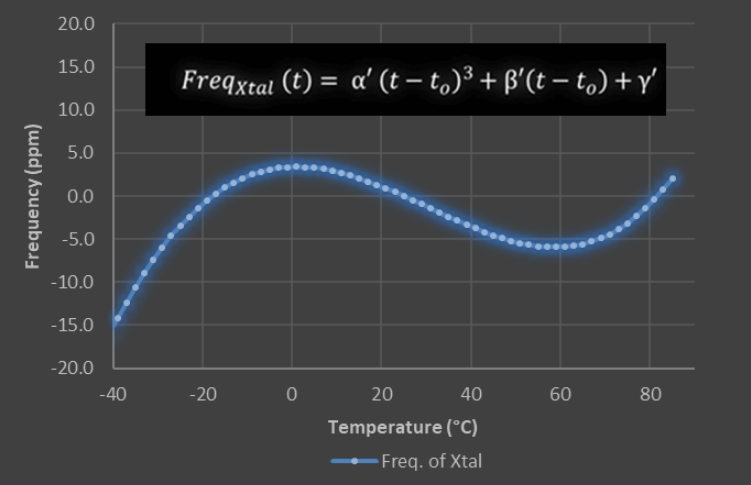

在極端溫度條件下，正常石英晶體振蕩器(XO)會出現最大+/-100ppm的頻率偏差，因為高次多項式系數在極端溫度范圍內更加明顯。如上圖1所示，普通XO的頻率穩定性對于許多應用來說完全足夠。然而，還有許多其他應用，例如無線或GPS應用，它們的需求更高，而TCXOs只能滿足這些需求。
| 原廠編碼 | 品牌pnlnip | 參數 | 類型 | 頻率 | 輸出 | 頻率穩定度 | 工作溫度 |
| CFL-A7BP-156.25TS | Cardinal | OSC XO 156.25MHZ LVDS SMD | XO (Standard) | 156.25MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFL-A7BP-212.5TS | Cardinal | OSC XO 212.50MHZ LVDS SMD | XO (Standard) | 212.5MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFL-A7BP-311.04TS | Cardinal | OSC XO 311.04MHZ LVDS SMD | XO (Standard) | 311.04MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFL-A7BP-622.08TS | Cardinal | OSC XO 622.08MHZ LVDS SMD | XO (Standard) | 622.08MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFVE-A7BP-155.52TS | Cardinal | OSC VCXO 155.52MHZ LVPECL SMD | VCXO | 155.52MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVE-A7BP-156.25TS | Cardinal | OSC VCXO 156.25MHZ LVPECL SMD | VCXO | 156.25MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVE-A7BP-212.5TS | Cardinal | OSC VCXO 212.50MHZ LVPECL SMD | VCXO | 212.5MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVE-A7BP-311.04TS | Cardinal | OSC VCXO 311.04MHZ LVPECL SMD | VCXO | 311.04MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVE-A7BP-622.08TS | Cardinal | OSC VCXO 622.08MHZ LVPECL SMD | VCXO | 622.08MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVED-A7BP-155.52TS | Cardinal | OSC VCXO 155.52MHZ LVPECL SMD | VCXO | 155.52MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVED-A7BP-156.25TS | Cardinal | OSC VCXO 156.25MHZ LVPECL SMD | VCXO | 156.25MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVED-A7BP-212.5TS | Cardinal | OSC VCXO 212.50MHZ LVPECL SMD | VCXO | 212.5MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVED-A7BP-311.04TS | Cardinal | OSC VCXO 311.04MHZ LVPECL SMD | VCXO | 311.04MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVED-A7BP-622.08TS | Cardinal | OSC VCXO 622.08MHZ LVPECL SMD | VCXO | 622.08MHz | LVPECL | ±50ppm | -40°C ~ 85°C |
| CFVL-A7BP-155.52TS | Cardinal | OSC VCXO 155.52MHZ LVDS SMD | VCXO | 155.52MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFVL-A7BP-156.25TS | Cardinal | OSC VCXO 156.25MHZ LVDS SMD | VCXO | 156.25MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFVL-A7BP-212.5TS | Cardinal | OSC VCXO 212.50MHZ LVDS SMD | VCXO | 212.5MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFVL-A7BP-311.04TS | Cardinal | OSC VCXO 311.04MHZ LVDS SMD | VCXO | 311.04MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CFVL-A7BP-622.08TS | Cardinal | OSC VCXO 622.08MHZ LVDS SMD | VCXO | 622.08MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CTED-A5B3-155.52TS | Cardinal | OSC TCXO 155.52MHZ LVPECL SMD | TCXO | 155.52MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTED-A5B3-156.25TS | Cardinal | OSC TCXO 156.25MHZ LVPECL SMD | TCXO | 156.25MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTED-A5B3-212.5TS | Cardinal | OSC TCXO 212.50MHZ LVPECL SMD | TCXO | 212.5MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTED-A5B3-311.04TS | Cardinal | OSC TCXO 311.04MHZ LVPECL SMD | TCXO | 311.04MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTED-A5B3-622.08TS | Cardinal | OSC TCXO 622.08MHZ LVPECL SMD | TCXO | 622.08MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTL-A5B3-155.52TS | Cardinal | OSC TCXO 155.52MHZ LVDS SMD | TCXO | 155.52MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTL-A5B3-156.25TS | Cardinal | OSC TCXO 156.25MHZ LVDS SMD | TCXO | 156.25MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTL-A5B3-212.5TS | Cardinal | OSC TCXO 212.50MHZ LVDS SMD | TCXO | 212.5MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTL-A5B3-311.04TS | Cardinal | OSC TCXO 311.04MHZ LVDS SMD | TCXO | 311.04MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTL-A5B3-622.08TS | Cardinal晶振 | OSC TCXO 622.08MHZ LVDS SMD | TCXO | 622.08MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTVED-A5B3-155.52TS | Cardinal | OSC VCTCXO 155.52MHZ LVPECL SMD | VCTCXO | 155.52MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTVED-A5B3-156.25TS | Cardinal | OSC VCTCXO 156.25MHZ LVPECL SMD | VCTCXO | 156.25MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTVED-A5B3-212.5TS | Cardinal | OSC VCTCXO 212.50MHZ LVPECL SMD | VCTCXO | 212.5MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTVED-A5B3-311.04TS | Cardinal | OSC VCTCXO 311.04MHZ LVPECL SMD | VCTCXO | 311.04MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTVED-A5B3-622.08TS | Cardinal | OSC VCTCXO 622.08MHZ LVPECL SMD | VCTCXO | 622.08MHz | LVPECL | ±2.5ppm | -20°C ~ 70°C |
| CTVL-A5B3-155.52TS | Cardinal | OSC VCTCXO 155.52MHZ LVDS SMD | VCTCXO | 155.52MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTVL-A5B3-156.25TS | Cardinal | OSC VCTCXO 156.25MHZ LVDS SMD | VCTCXO | 156.25MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTVL-A5B3-212.5TS | Cardinal | OSC VCTCXO 212.50MHZ LVDS SMD | VCTCXO | 212.5MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTVL-A5B3-311.04TS | Cardinal | OSC VCTCXO 311.04MHZ LVDS SMD | VCTCXO | 311.04MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CTVL-A5B3-622.08TS | Cardinal | OSC VCTCXO 622.08MHZ LVDS SMD | VCTCXO | 622.08MHz | LVDS | ±2.5ppm | -20°C ~ 70°C |
| CPPE7-A7BR-118.75 | Cardinal | OSC XO 118.75MHZ LVPECL SMD | XO (Standard) | 118.75MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-25.0 | Cardinal | OSC XO 25.000MHZ LVPECL SMD | XO (Standard) | 25MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-120.0 | Cardinal | OSC XO 120.000MHZ LVPECL SMD | XO (Standard) | 120MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-121.25 | Cardinal | OSC XO 121.25MHZ LVPECL SMD | XO (Standard) | 121.25MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-122.50 | Cardinal | OSC XO 122.50MHZ LVPECL SMD | XO (Standard) | 122.5MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-131.25 | Cardinal | OSC XO 131.25MHZ LVPECL SMD | XO (Standard) | 131.25MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-148.4375 | Cardinal | OSC XO 148.4375MHZ LVPECL SMD | XO (Standard) | 148.4375MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-164.0625 | Cardinal | OSC XO 164.0625MHZ LVPECL SMD | XO (Standard) | 164.0625MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPE7-A7BR-30.0 | Cardinal | OSC XO 30.000MHZ LVPECL SMD | XO (Standard) | 30MHz | LVPECL | ±25ppm | -40°C ~ 85°C |
| CPPV7-A5BP-135.0 | Cardinal | OSC XO 135.000MHZ LVDS SMD | XO (Standard) | 135MHz | LVDS | ±50ppm | -20°C ~ 70°C |
| CPPV7-A5BR-14.75 | Cardinal | OSC XO 14.75MHZ LVDS SMD | XO (Standard) | 14.75MHz | LVDS | ±25ppm | -20°C ~ 70°C |
| CPPV7-A7BP-159.375 | Cardinal | OSC XO 159.375MHZ LVDS SMD | XO (Standard) | 159.375MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CPPV7-A7BP-200.0 | Cardinal | OSC XO 200.000MHZ LVDS SMD | XO (Standard) | 200MHz | LVDS | ±50ppm | -40°C ~ 85°C |
| CPPV7-A7BR-122.88 | Cardinal | OSC XO 122.88MHZ LVDS SMD | XO (Standard) | 122.88MHz | LVDS | ±25ppm | -40°C ~ 85°C |
| CPPV7-A7BR-50.0TS | Cardinal | OSC XO 50.000MHZ LVDS SMD | XO (Standard) | 50MHz | LVDS | ±25ppm | -40°C ~ 85°C |
| CPPV7-BR-100.0 | Cardinal | OSC XO 100.000MHZ LVDS SMD | XO (Standard) | 100MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7-BR-105.0 | Cardinal | OSC XO 105.000MHZ LVDS SMD | XO (Standard) | 105MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7-BR-125.0 | Cardinal | OSC XO 125.000MHZ LVDS SMD | XO (Standard) | 125MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7-BR-133.333 | Cardinal | OSC XO 133.333MHZ LVDS SMD | XO (Standard) | 133.333MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7-BR-20.0 | Cardinal | OSC XO 20.000MHZ LVDS SMD | XO (Standard) | 20MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7-BR-40.000 | Cardinal | OSC XO 40.000MHZ LVDS SMD | XO (Standard) | 40MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7-BR-80.0 | Cardinal | OSC XO 80.000MHZ LVDS SMD | XO (Standard) | 80MHz | LVDS | ±25ppm | 0°C ~ 70°C |
| CPPV7Z-A7BR-200.0 | Cardinal | OSC XO 200.000MHZ LVDS SMD | XO (Standard) | 200MHz | LVDS | ±25ppm | -40°C ~ 85°C |
| CPPV7-A5BP-80.0 | Cardinal | OSC XO 80.000MHZ LVDS SMD | XO (Standard) | 80MHz | LVDS | ±50ppm | -20°C ~ 70°C |
奇特的Cardinal溫補晶振編碼系列CTED-A5B3-156.25TS，由于其巨大的頻率穩定性，TCXOs特別適合電信中的無線應用。這些組件在物聯網領域、GPS應用和眾多消費產品中也有很大的需求。
