首頁進口晶振 IQD晶振LFXTAL082140,1610mm,32.768KHz,IQD兩腳貼片晶振

LFXTAL082140,1610mm,32.768KHz,IQD兩腳貼片晶振

產品型號：63793217
頻率：32.768KHz
尺寸：1.6x1.0mm
產品介紹：LFXTAL082140,1610mm,32.768KHz,IQD兩腳貼片晶振,IQXC-90,音叉晶體，IQD晶振，伊克德晶振，英國進口晶振，產品編碼：LFXTAL066198，型號為：IQXC-90，頻率：32.76...

LFXTAL082140,1610mm,32.768KHz,IQD兩腳貼片晶振,IQXC-90,音叉晶體，IQD晶振，伊克德晶振，英國進口晶振，產品編碼：LFXTAL066198，型號為：IQXC-90，頻率：32.768KHz，頻率公差：±20ppm，負載電容：4pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：1.6x1.0晶振，SMD晶體，兩腳貼片晶振，無源晶振，石英晶振，音叉晶體，手表晶振，石英晶體諧振器，無鉛晶振。具有超小型晶振，輕薄型晶振，高性能晶振，高品質晶振，高質量晶振，耐熱及耐環境特點。特別適用于實時時鐘應用程序，鐘表電子，可穿戴設備，儀器設備晶振，數字顯示晶振，計時器等應用。

LFXTAL082140,1610mm,32.768KHz,IQD兩腳貼片晶振,IQXC-90,音叉晶體,參數表

Frequency	32.768kHz
Frequency Tolerance	±20.00ppm
Tolerance Condition	@ 25°C ±5°C
Ageing	±3ppm max per year @ 25°C
Ageing	±3°C
Frequency Stability Coefficient:	-0.036ppm°C² ±10%
Load Capacitance (CL)	4.0pF to 12.5pF
Shunt Capacitance (C0)	1.2pF typ
Drive Level	500nW max
Operating Temperature Ranges	-40 to 85°C
Storage Temperature Range:	-55 to 125°C

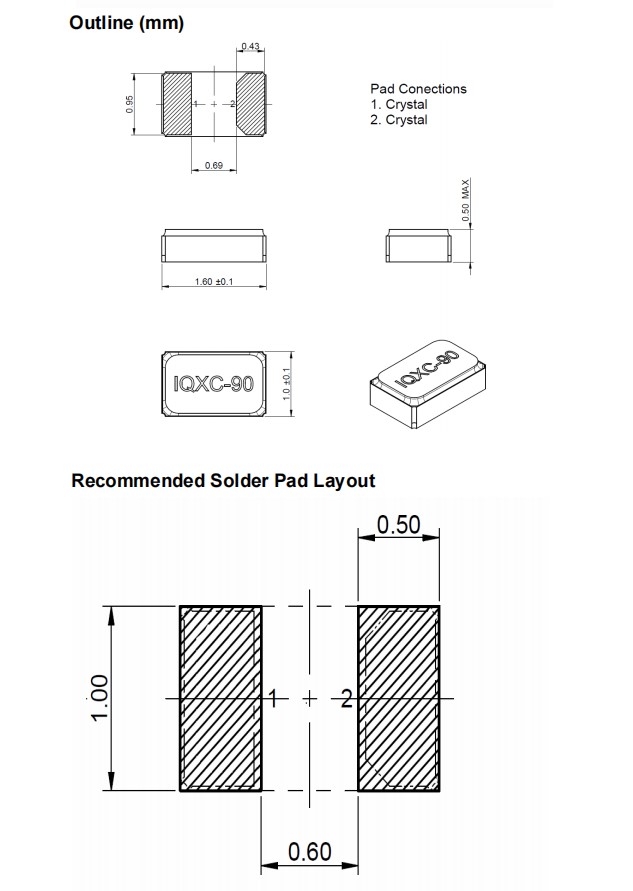

LFXTAL082140,1610mm,32.768KHz,IQD兩腳貼片晶振,IQXC-90,音叉晶體,尺寸圖

制造商零件編碼	晶振廠家	系列	描述	頻率
LFXTAL084882REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL051643REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL050789REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL084883REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL066198REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL009678REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL084884REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL084885REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL073264REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL059461REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz
LFXTAL062558REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL065455REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL025159REEL	IQD晶振	CFPX-56	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL002996BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL025159BULK	IQD晶振	CFPX-56	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL014219BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 6PF TH	32.768 kHz
LFXTAL002995BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL002997BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL016178REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003000REEL	石英晶振	85SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL050632REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL066431REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz
LFXTAL054236REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL009709REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz
LFXTAL009706REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL065253REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL066834REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL003000BULK	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL016178BULK	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL015822REEL	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003003REEL	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL003004REEL	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL010193REEL	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL010193BULK	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003003BULK	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL015822BULK	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003004BULK	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
