- 產品型號：96456828
- 頻率：56.000MHz
- 尺寸：1.6x1.2mm
- 產品介紹：FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振動子，美國進口晶振，FOX晶振，福克斯晶振，型號：FC0BS（FormerFX1612B），編碼為：FC0BSECGM56.0-T3，頻率為...
-
FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振動子
.jpg)
.jpg)
FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振動子，美國進口晶振，FOX晶振，福克斯晶振，型號：FC0BS（Former FX1612B），編碼為：FC0BSECGM56.0-T3，頻率為：56.000MHz，小體積晶振尺寸：1.6x1.2mm封裝，陶瓷SMD晶體，石英晶振，四腳貼片晶振，無源晶振，SMD晶振，石英晶體諧振器，諧振器，工作溫度范圍：-40℃至+85℃，無鉛晶振。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：通訊設備，玩具晶振，無線藍牙，智能穿戴設備，小型便捷式設備，智能手機，平板電腦，智能家居，游戲機設備，汽車電子，醫療設備，數碼電子，遙控器設備應用等。
.jpg)
FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振動子,參數表
| STANDARD SPECIFICATIONS | ||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||
| Frequency Range | 56.000 MHz | |||||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | |||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | |||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -40°C ~ +85°C |
|||||||||||||||
| Shunt Capacitance (CO) | 3 pF | |||||||||||||||
| Load Capacitance (CL) | (See options below) | |||||||||||||||
| Drive Level | 100 µW | |||||||||||||||
| Aging per year (@ 25°C) | ±3 PPM | |||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | |||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | |||||||||||||||
| Termination Finish |
Au (0.3~1µm) over Ni (1.27~8.89µm) |
|||||||||||||||
| Seal Method | Seam | |||||||||||||||
| Lead (Pb) Free | Yes | |||||||||||||||
| RoHS Compliant | Yes, no exemptions | |||||||||||||||
| REACH Compliant (latest version) | Yes | |||||||||||||||
.jpg)

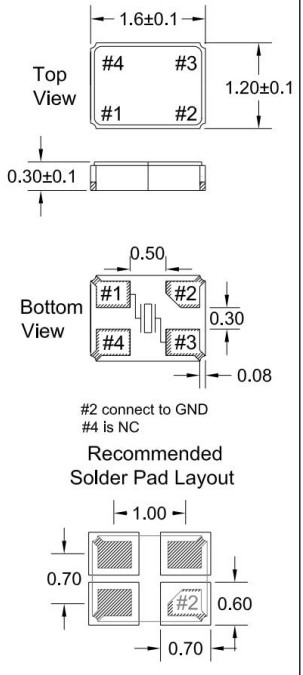

FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振動子,尺寸圖
FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振動子
產品特點：
外形尺寸：1.6mmx1.2mm
頻率范圍：23.900MHz~80.000MHz貼片晶振
公差低至±10 PPM
外形尺寸：1.6mmx1.2mm
頻率范圍：23.900MHz~80.000MHz貼片晶振
公差低至±10 PPM
穩定性低至±10 PPM
溫度范圍寬至-55°C至+125°C
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-18.432 | Fox晶振 | C5BQ | 18.432MHz | 4-SMD, No Lead | ±30ppm |
| FX252BS-24.000 | Fox晶振 | FX252B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-27.000 | Fox晶振 | FQ3225B | 27MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-10.000 | Fox晶振 | FX532B | 10MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-19.6608 | Fox晶振 | C5BQ | 19.6608MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-14.7456 | Fox晶振 | C5BQ | 14.7456MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| 617-24.572675-1 | Fox晶振 | FX216B | 24.572675MHZ | 4-SMD, No Lead | ±50ppm |
| FX532B-11.0592 | Fox晶振 | FX532B | 11.0592MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.000 | Fox晶振 | FX532B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.000 | Fox晶振 | FX425B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| 603-25-203 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±50ppm |
| 603-40-48 | Fox晶振 | FX325BS | 40MHz | 4-SMD, No Lead | ±20ppm |
| 603-25-261 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±20ppm |
