首頁進口晶振 Crystek晶振C3290-16.384,Crystek時鐘振蕩器,7050mm晶振

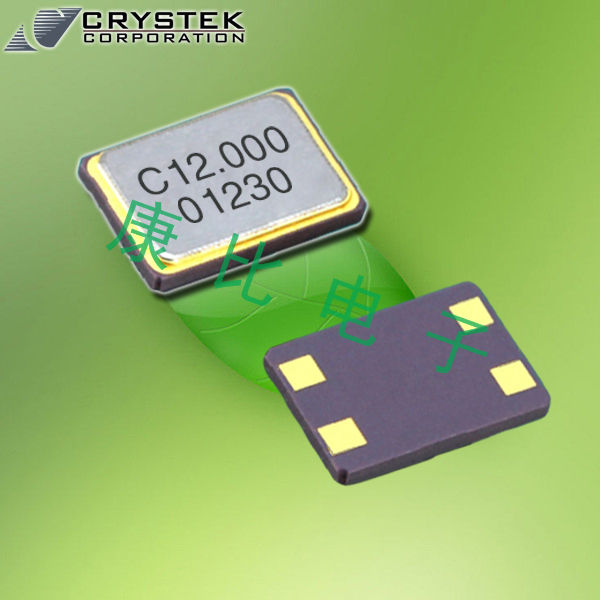

C3290-16.384,Crystek時鐘振蕩器,7050mm晶振

產品型號：85046681
頻率：16.384MHz
尺寸：7.0x5.0mm
產品介紹：C3290-16.384,Crystek時鐘振蕩器,7050mm晶振,數字視頻晶振，美國進口晶振，Crystek晶振，瑞斯克晶振，型號：C32xx系列晶振，編碼：C3290-16.384，頻率：16.384MHz...

C3290-16.384,Crystek時鐘振蕩器,7050mm晶振,數字視頻晶振，美國進口晶振，Crystek晶振，瑞斯克晶振，型號：C32xx系列晶振，編碼：C3290-16.384，頻率：16.384MHz，頻率穩定性：±100ppm，工作溫度范圍：0℃至+70℃，工作電壓為：5.0V，HCMOS輸出晶振，小體積晶振尺寸：7.0x5.0x1.8mm，四腳貼片晶振，石英晶體振蕩器，時鐘振蕩器。具有超小型，輕薄型，高性能，低抖動，低相位噪聲等特點。應用范圍：數字視頻，SONET/SDH/DWDM，存儲區域網絡，寬帶接入晶振，以太網、千兆以太網等應用。

貼片晶振型號C32xx系列是一個1.544MHz到100.000MHz的HCMOS時鐘振蕩器，工作電壓5.0V。該振蕩器利用基本或高Q第三泛音晶體設計，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。

C3290-16.384,Crystek時鐘振蕩器,7050mm晶振,數字視頻晶振,參數表

Frequency Range:	16.384 MHz
Frequency Stability Options:	±20*, ±25, ±50, ±100 (ppm)
Temperature Range: (standard)	0°C to +70°C
(Option “M”)	-20°C to +70°C
(Option “E”*)	-40°C to +85°C
Storage Temperature:	-45°C to 90°C
Input Voltage:	5.0V ±0.5V
Input Current:	60mA Max
Standby Current:	10uA Max
Output:	HCMOS
Symmetry:
(Standard “2”)	40/60% Max @ 50% Vdd
(Option “9”)	45/55% Max @ 50% Vdd
Rise/Fall Time:	6ns Max @ 20% to 80% Vdd
Logic:	"0" = 10% Vdd Max
	"1" = 90% Vdd Min
Disable Time:	200ns Max
Start-up Time:	10ms Max
Load:	30pF Max
Jitter RMS: 12kHz~20MHz	0.5ps Typical, 1ps Max
Sub-harmonics:	None
Aging:	<3ppm 1st year, <1ppm every year thereafter

C3290-16.384,Crystek時鐘振蕩器,7050mm晶振,數字視頻晶振,尺寸圖

原廠代碼	進口晶振	型號	頻率	頻率穩定度
C3290-1.544	Crystek晶振	C3290	1.544MHz	±100ppm
C3290-1.843200	Crystek晶振	C3290	1.8432MHz	±100ppm
C3290-10.000	Crystek晶振	C3290	10MHz	±100ppm
C3290-12.000	Crystek晶振	C3290	12MHz	±100ppm
C3290-12.288	Crystek晶振	C3290	12.288MHz	±100ppm
C3290-12.352	Crystek晶振	C3290	12.352MHz	±100ppm
C3290-14.318180	Crystek晶振	C3290	14.31818MHz	±100ppm
C3290-15.360	Crystek晶振	C3290	15.36MHz	±100ppm
C3290-16.000	Crystek晶振	C3290	16MHz	±100ppm
C3290-16.384	Crystek晶振	C3290	16.384MHz	±100ppm
C3290-18.432	Crystek晶振	C3290	18.432MHz	±100ppm
C3290-19.440	Crystek晶振	C3290	19.44MHz	±100ppm
C3290-2.048	Crystek晶振	C3290	2.048MHz	±100ppm
C3290-20.000	Crystek晶振	C3290	20MHz	±100ppm
C3290-20.480	Crystek晶振	C3290	20.48MHz	±100ppm
C3290-24.000	Crystek晶振	C3290	24MHz	±100ppm
C3290-24.704	Crystek晶振	C3290	24.704MHz	±100ppm
C3290-25.000	Crystek晶振	C3290	25MHz	±100ppm
C3290-3.686400	Crystek晶振	C3290	3.6864MHz	±100ppm
C3290-30.000	Crystek晶振	C3290	30MHz	±100ppm
C3290-32.000	Crystek晶振	C3290	32MHz	±100ppm
C3290-32.768	Crystek晶振	C3290	32.768MHz	±100ppm
C3290-33.000	Crystek晶振	C3290	33MHz	±100ppm
C3290-33.333	Crystek晶振	C3290	33.333MHz	±100ppm
C3290-35.000	Crystek晶振	C3290	35MHz	±100ppm
