首頁進口晶振 Cardinal晶振歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用

歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用

產品型號：37653465
頻率：26.000MHz
尺寸：13.2 x 13.2 x 5.6mm
產品介紹：歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用，歐美進口晶振，Cardinal卡迪納爾晶振，型號：CPPL4系列，編碼為CPPLC4LTA5BR26.0TS，尺寸為：13.2x1...

歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用，歐美進口晶振，Cardinal卡迪納爾晶振，型號：CPPL4系列，編碼為CPPLC4LTA5BR26.0TS，尺寸為：13.2x13.2x5.6mm金屬密封件封裝，頻率為：26.000MHz，石英晶振，插件晶振，石英晶體振蕩器，無鉛環保晶振，進口晶振，CMOS輸出（將與TTL設備接口）啟用/禁用功能（可選備用功能）3.3V標稱電源電壓半DIP包工廠編程，應用于：驅動A/D，D/As，FPGAs數字視頻，以太網，GbE醫療，存儲區域，網絡COTS，寬帶接入，超聲波/SDH/DWDM，測試和測量。

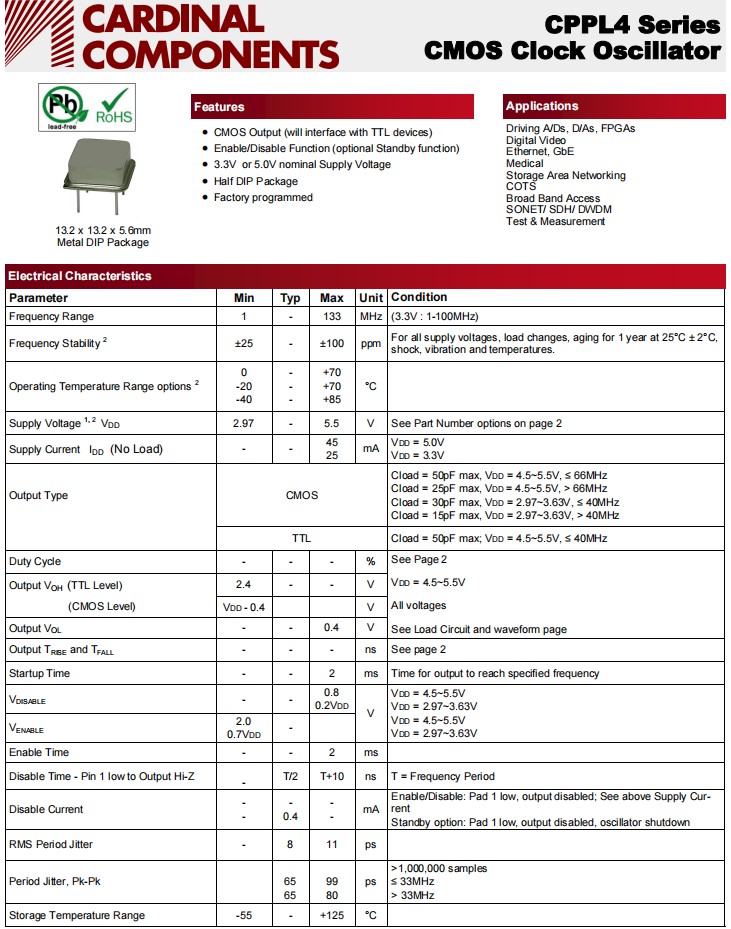

歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用，參數表

Electrical Characteristics CPPL4參數說明
Parameter			Min	Typ	Max	Unit	Condition
Frequency Range			1	-	133	MHz	(3.3V : 1-100MHz)
Frequency Stability	2		±25	-	±100	ppm	For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
			0	-	70
Operating Temperature Range options		2	-20	-	70	°C
			-40	-	85
Supply Voltage 1, 2 VDD			2.97	-	5.5	V	See Part Number options on page 2
Supply Current IDD (No Load)			-	-	45	mA	VDD = 5.0V
Supply Current IDD (No Load)			-	-	25	mA	VDD = 3.3V
							Cload = 50pF max, VDD = 4.5~5.5V, ≤ 66MHz
Output Type			CMOS				Cload = 25pF max, VDD = 4.5~5.5V, > 66MHz
							Cload = 30pF max, VDD = 2.97~3.63V, ≤ 40MHz
							Cload = 15pF max, VDD = 2.97~3.63V, > 40MHz
			TTL				Cload = 50pF max; VDD = 4.5~5.5V, ≤ 40MHz
Duty Cycle			-	-	-	%	See Page 2
Output VOH (TTL Level)			2.4	-	-	V	VDD = 4.5~5.5V
(CMOS Level)			VDD - 0.4			V	All voltages
Output VOL			-	-	0.4	V	See Load Circuit and waveform page
Output TRISE and TFALL			-	-	-	ns	See page 2
Startup Time			-	-	2	ms	Time for output to reach specified frequency
VDISABLE			-	-	0.8 0.2VDD		VDD = 4.5~5.5V
						V	VDD = 2.97~3.63V
							VDD = 4.5~5.5V
VENABLE			2.0 0.7VDD	-			VDD = 2.97~3.63V
Enable Time			-	-	2	ms
Disable Time - Pin 1 low to Output Hi-Z				T/2	T+10	ns	T = Frequency Period
Disable Time - Pin 1 low to Output Hi-Z			-	T/2	T+10	ns	T = Frequency Period
Disable Current			-	-	-	mA	Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent
Disable Current			-	0.4	-	mA	Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter			-	8	11	ps
Period Jitter, Pk-Pk				65	99	ps	>1,000,000 samples
				65	80		≤ 33MHz
							> 33MHz
Storage Temperature Range			-55	-	125	°C

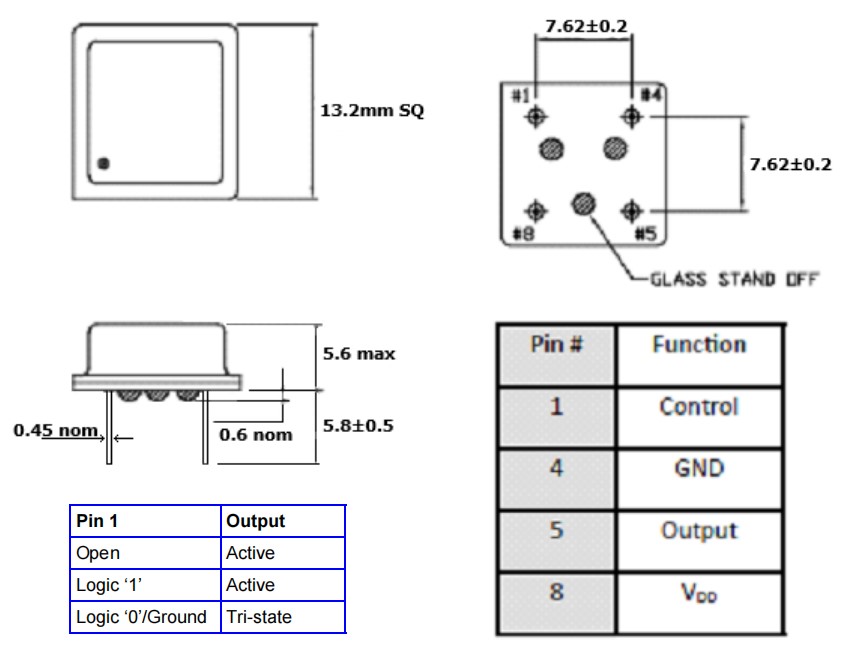

歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用，尺寸圖

歐美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS輸出振蕩器6G應用

特征：

CMOS輸出（將與TTL設備接口）

啟用/禁用功能（可選待機功能）

3.3V或5.0V標稱電源電壓

半DIP封裝

工廠編程 有源晶振

應用程序：

驅動A/D、D/A、FPGA

數字視頻

以太網，GbE

醫學的

存儲區域網絡

帆布床

寬帶接入

SONET/SDH/DWDM網絡

測試和測量

石英晶體振蕩器	品牌	系列	頻率	Description描述
CPPLC7LT-BR-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS SMD
CPPLC7-A7BP-40.68TS	Cardinal晶振	FIPO™ CPPL	40.68MHz	OSC XO 40.68MHZ CMOS SMD
CPPLC7L-A7BP-2.0TS	Cardinal晶振	FIPO™ CPPL	2MHz	OSC XO 2.000MHZ CMOS SMD
CPPLC7L-B6-16.8TS	Cardinal晶振	FIPO™ CPPL	16.8MHz	OSC XO 16.80MHZ CMOS SMD
CPPLC7L-A7BP-40.0TS	Cardinal晶振	FIPO™ CPPL	40MHz	OSC XO 40.000MHZ CMOS SMD
CPPLC5-A7BR-19.6608PD	Cardinal晶振	FIPO™ CPPL	19.6608MHz	OSC XO 19.6608MHZ CMOS SMD
CPPLC7-A7BR-27.12TS	Cardinal晶振	FIPO™ CPPL	27.12MHz	OSC XO 27.12MHZ CMOS SMD
CPPLC7L-A7BP-49.152TS	Cardinal晶振	FIPO™ CPPL	49.152MHz	OSC XO 49.152MHZ CMOS SMD
CPPLC7L-B6-50.0TS	Cardinal晶振	FIPO™ CPPL	50MHz	OSC XO 50.000MHZ CMOS SMD
CPPLC5-A7BR-25.6TS	Cardinal晶振	FIPO™ CPPL	25.6MHz	OSC XO 25.60MHZ CMOS SMD
CPPLC7-A7BR-49.152PD	Cardinal晶振	FIPO™ CPPL	49.152MHz	OSC XO 49.152MHZ CMOS SMD
CPPLC5L-A5B6-66.666TS	Cardinal晶振	FIPO™ CPPL	66.666MHz	OSC XO 66.666MHZ CMOS SMD
CPPLC7-BR-28.63636TS	Cardinal晶振	FIPO™ CPPL	28.63636MHz	OSC XO 28.63636MHZ CMOS SMD
CPPLC7L-BP-200.0TS	Cardinal晶振	FIPO™ CPPL	200MHz	OSC XO 200.000MHZ CMOS SMD
CPPLC5L-A5BP-125.0TS	Cardinal晶振	FIPO™ CPPL	125MHz	OSC XO 125.000MHZ CMOS SMD
CPPLC7L-A7BR-10.0TS	Cardinal晶振	FIPO™ CPPL	10MHz	OSC XO 10.000MHZ CMOS SMD
CPPLC5L-A7BP-28.9767TS	Cardinal晶振	FIPO™ CPPL	28.9767MHz	OSC XO 28.9767MHZ CMOS SMD
CPPLC7L-A7BR-66.66TS	Cardinal晶振	FIPO™ CPPL	66.66MHz	OSC XO 66.66MHZ CMOS SMD
CPPLC7LZ-A5BR-16.9344TS	Cardinal晶振	FIPO™ CPPL	16.9344MHz	OSC XO 16.9344MHZ CMOS SMD
CPPLC7-A7BP-110.0PD	Cardinal晶振	FIPO™ CPPL	110MHz	OSC XO 110.000MHZ CMOS SMD
CPPLC7-A7BP-7.5TS	有源晶振	FIPO™ CPPL	7.5MHz	OSC XO 7.50MHZ CMOS SMD
CPPLC7L-A7BP-50.0TS	Cardinal晶振	FIPO™ CPPL	50MHz	OSC XO 50.000MHZ CMOS SMD
CPPLC7L-BP-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS SMD
CPPLC7L-A7BP-52.0TS	Cardinal晶振	FIPO™ CPPL	52MHz	OSC XO 52.000MHZ CMOS SMD
CPPLC7L-BP-96.0TS	Cardinal晶振	FIPO™ CPPL	96MHz	OSC XO 96.000MHZ CMOS SMD
CPPLC7-BR-28.6363TS	Cardinal晶振	FIPO™ CPPL	28.6363MHz	OSC XO 28.6363MHZ CMOS SMD
CPPLC7L-A5B6-50.0TS	Cardinal晶振	FIPO™ CPPL	50MHz	OSC XO 50.000MHZ CMOS SMD
CPPLC7L-A7BR-12.0TS	Cardinal晶振	FIPO™ CPPL	12MHz	OSC XO 12.000MHZ CMOS SMD
CPPLC7L-A7BR-16.0TS	Cardinal晶振	FIPO™ CPPL	16MHz	OSC XO 16.000MHZ CMOS SMD
CPPLC7L-A5BP-25.0TS	Cardinal晶振	FIPO™ CPPL	25MHz	OSC XO 25.000MHZ CMOS SMD
CPPLC7L-BR-90.105TS	Cardinal晶振	FIPO™ CPPL	90.105MHz	OSC XO 90.105MHZ CMOS SMD
CPPLC7L-A5BP-33.3333TS	Cardinal晶振	FIPO™ CPPL	33.3333MHz	OSC XO 33.3333MHZ CMOS SMD
CPPLC7LT-A7BR-10.48576TS	Cardinal晶振	FIPO™ CPPL	10.48576MHz	OSC XO 10.48576MHZ CMOS SMD
CPPLC7L-A7BR-18.432TS	Cardinal晶振	FIPO™ CPPL	18.432MHz	OSC XO 18.432MHZ CMOS SMD
CPPLC7L-A7BR-18.43TS	Cardinal晶振	FIPO™ CPPL	18.43MHz	OSC XO 18.43MHZ CMOS SMD
CPPLC7L-A5BR-22.5792TS	Cardinal晶振	FIPO™ CPPL	22.5792MHz	OSC XO 22.5792MHZ CMOS SMD
CPPLC7L-A5BR-50.0TS	Cardinal晶振	FIPO™ CPPL	50MHz	OSC XO 50.000MHZ CMOS SMD
CPPLC7L-A7BR-24.0TS	Cardinal晶振	FIPO™ CPPL	24MHz	OSC XO 24.000MHZ CMOS SMD
CPPLC7LT-A7BR-50.0TS	Cardinal晶振	FIPO™ CPPL	50MHz	OSC XO 50.000MHZ CMOS SMD
CPPLC7L-A7B6-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS SMD
CPPLC7L-A7BR-25.0TS	Cardinal晶振	FIPO™ CPPL	25MHz	OSC XO 25.000MHZ CMOS SMD
CPPLC7LT-BP-25.0PD	Cardinal晶振	FIPO™ CPPL	25MHz	OSC XO 25.000MHZ CMOS SMD
