首頁臺產晶振 AKER晶振Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振

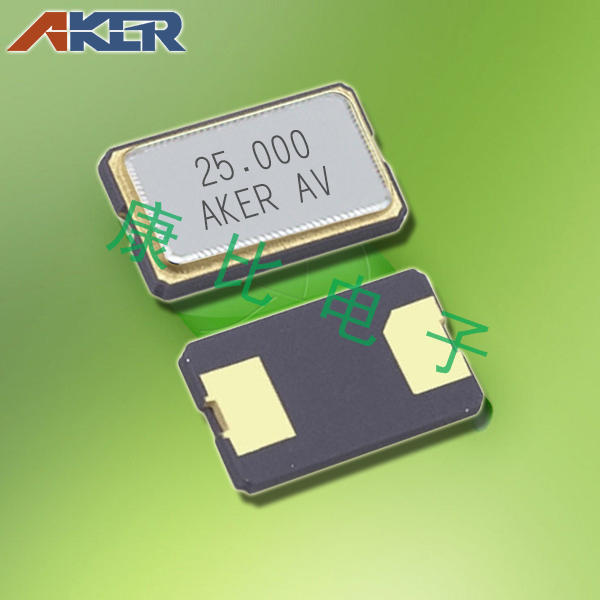

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振

產品型號：33452673
頻率：24.576000MHz
尺寸：6.0x3.5mm
產品介紹：Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振，AKER晶振，安碁晶振，型號：C6SA系列，編碼為：C6SA-24.576000-18-3050-R，頻率為：24.576000MHz，小體積晶...

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振，AKER晶振，安碁晶振，型號：C6SA系列，編碼為：C6SA-24.576000-18-3050-R，頻率為：24.576000MHz，小體積晶振尺寸：6.0x3.5mm封裝，兩腳貼片晶振，石英晶體諧振器，石英晶體，無源晶振，無鉛晶振，SMD晶振，微處理器晶體。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。石英晶振，應用于：通訊設備，無線網絡，藍牙模塊，平板電腦，汽車電子，醫療設備，數碼電子，智能家居等應用。

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振,參數表

Frequency Range

24.576000

MHz

Mode of Oscillation

Fundamental

8.000 to 52.000

MHz

Third Overtone

40.000 to 133.00

Frequency Tolerance at 25°C

Standard

±30

PPM Max

Optional

±25

±20

±15

±10

Frequency Stability over
Temperature Range

Standard

±50

PPM Max

Optional

±100

±30

±25

±20

±15

±10*

Operating Temperature Range

Standard

-20 to +70

℃

Extended

-40 to +85

-40 to +125

Storage Temperature Range

-55 to +125

Aging

±3

PPM Max/Year

Load Capacitance

6 to 47 and Series Resonance

Shunt Capacitance

7.0

Equivalent Series Resistance(ESR)

See ESR Table

Ohm

Drive Level

100

uW Max

Insulation Resistance

500 at 100 Vdc ± 15 Vdc

M Ohm

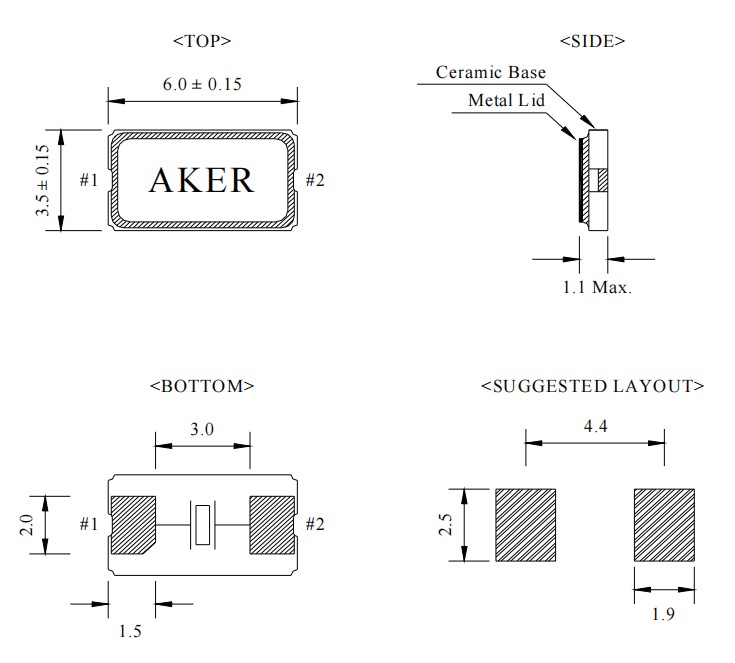

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振,尺寸圖

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振
產品特點：

外形尺寸：6.0x3.5mm 兩墊腳貼片晶振

頻率范圍：8~133MHz

微處理器晶體單元

低調

通用產品規范

產品編碼	晶振廠家	描述	系列	頻率
C3E-16.000-18-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 18PF SMD	C3E	16 MHz
C3E-20.000-12-3030-X-R	Aker安碁	CRYSTAL 20.0000MHZ 12PF SMD	C3E	20 MHz
C3E-16.000-12-3030-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-25.000-18-3030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-18-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-18-2030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-8-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-25.000-8-1010-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-25.000-8-1520-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-32.000-10-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-12.000-8-1520-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-32.000-12-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-25.000-8-1015-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-12.000-18-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-12-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 12PF SMD	C3E	25 MHz
C3E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C3E	25 MHz
C3E-24.000-8-1015-R	Aker安碁	CRYSTAL 24.0000MHZ 8PF SMD	C3E	24 MHz
C3E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-32.000-12-1530-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-12.000-8-1010-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-16.000-8-1015-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-32.000-10-1015-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-24.000-12-1530-X-R	Aker晶振	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-12-3030-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-18-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 18PF SMD	C3E	24 MHz
C3E-20.000-10-1530-X-R	Aker安碁	CRYSTAL 20.0000MHZ 10PF SMD	C3E	20 MHz
C3E-25.000-8-1530-X-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-24.000-12-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-10-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-16.000-12-1015-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-40.000-10-1015-X-R	Aker安碁	CRYSTAL 40.0000MHZ 10PF SMD	C3E	40 MHz
C3E-32.000-8-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C3E	32 MHz
C3E-32.000-10-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-32.000-12-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-8.000-10-3030-R	Aker安碁	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz
C3E-8.000-10-3030-X-R	Aker安碁	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz
C3E-8.000-18-3030-X-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-18-3030-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-16.000-12-1015-X-M	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-24.000-9-1010-R	Aker安碁	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz
C3E-12.000-12-1020-X-R	Aker安碁	CRYSTAL 12MHZ 12PF SMD	C3E	12 MHz
C3E-12.000-18-1020-X-R	Aker安碁	CRYSTAL 12MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-20-1015-X-R	Aker安碁	CRYSTAL 25MHZ 20PF SMD	C3E	25 MHz
C3E-24.000-9-1015-X-R	Aker安碁	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz
C3E-16.000-9-1015-X-R	Aker安碁	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz
C3E-8.000-20-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz
C3E-8.000-18-1020-X-R	Aker安碁	CRYSTAL 8MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-8-1015-R	Aker安碁	CRYSTAL 8MHZ 8PF SMD	C3E	8 MHz
C3E-12.000-8-2050-X1-R	Aker安碁	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C3E X1	12 MHz
C3E-16.000-10-3050-X1-R	Aker安碁	CRYSTAL 16MHZ 10PF SMD AEC-Q200	C3E X1	16 MHz
C3E-20.000-8-3050-X1-R	Aker安碁	CRYSTAL 20MHZ 8PF SMD AEC-Q200	C3E X1	20 MHz
C3E-8.000-18-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-12-1020-M	Aker安碁	CRYSTAL 8MHZ 12PF SMD	C3E	8 MHz
C3E-16.000-10-2050-X1-R	Aker安碁	CRYSTAL 10MHZ 10PF SMD AEC-Q200	C3E X1	10 MHz
C3E-30.000-8-2050-X1-R	Aker安碁	CRYSTAL 30MHZ 8PF SMD AEC-Q200	C3E X1	30 MHz
C3E-8.000-10-1020-M	Aker安碁	CRYSTAL 8MHZ 10PF SMD	C3E	8 MHz
C3E-24.576-12-3030-X-R	Aker安碁	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz
C3E-30.000-12-1020-X-R	Aker安碁	CRYSTAL 30MHZ 12PF SMD	C3E	30 MHz
C3E-12.000-12-1015-R	Aker安碁	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz
C3E-25.000-8-1015-X-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-26.000-10-1015-X-R3	Aker安碁	CRYSTAL 26.0000MHZ 10PF SMD	C3E	26 MHz
C3E-16.000-8-2050-X1-R	Aker安碁	CRYSTAL 16MHZ 8PF SMD AEC-Q200	C3E X1	16 MHz
C3E-8.000-12-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz
C3E-12.000-12-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz
C3E-27.120-12-1010-R	Aker安碁	CRYSTAL 27.1200MHZ 12PF SMD	C3E	27.12 MHz
C3E-24.576-12-1010-R	Aker安碁	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz
C3E-16.000-12-1015-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-13.560-12-1530-X-R	Aker安碁	CRYSTAL 13.5600MHZ 12PF SMD	C3E	13.56 MHz
C3E-20.000-10-3050-X1-R	Aker安碁	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C3E X1	20 MHz
C3E-27.120-12-1020-X-R	Aker安碁	CRYSTAL 27.120MHZ 12PF SMD	C3E	27.12 MHz
C3E-16.000-9-1010-R	Aker安碁	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz
C6S-16.000-12-5050-X-R	Aker安碁	CRYSTAL 16MHZ 12PF SMD	C6S	16 MHz
C3E-16.000-8-50100-X1-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-16.000-8-50150-A-X3-R	Aker安碁	UWB CRYSTAL, 3225, 16.000MHZ, 8P	C3E Auto	16 MHz
C3E-8.000-8-10150-A-X3-R	Aker安碁	UWB CRYSTAL, 3225, 8.000MHZ, 8PF	C3E Auto	8 MHz
C3E-16.000-8-10150-A-X3-R	Aker安碁	CRYSTAL, 3225, 16.000MHZ, 8PF, S	C3E Auto	16 MHz
C3E-24.000-12-1050-A-X1-R	Aker安碁	CRYSTAL, 3225, 24.000MHZ, 12PF,	C3E Auto	24 MHz
C3E-8.000-8-1080-A-X1-R	Aker安碁	CRYSTAL, 3225, 8.000MHZ, 8PF, SM	C3E Auto	8 MHz
C3E-16.000-12-2050-A-X1-R	Aker安碁	CRYSTAL, 3225, 16.000MHZ, 12PF,	C3E Auto	16 MHz
